Essen CO2 Transcritical Ball Valve 1-5/8

Essen CO2 Transcritical Ball Valve 1-5/8" - 120 Bar

Part Number: CRBV42

Part Number: CRBV42

Compare

Sign in to your Aire-Biz account to view pricing and stock levels.

Not an Airefrig customer? Complete our online account application form here to apply for a credit account.

Essen CO2 transcritical ball valve comes fitted with retainer. Maximum working pressure 120 bar. Copper tail connections are K65 (CuFE2P) a high strength modified copper alloy. Full flow valve porting and bi-directional application.
Brand Essen
Connection Size Solder 1-5/8"
Kv (m3/h) 117.64
Port Size (inch) 1-1/2"
Pressure Equipment Directive Class 1
Refrigerant CO2
Service Temp -40°C to +150°C

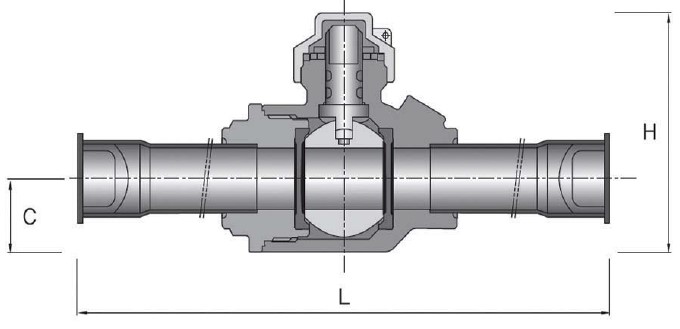

L: 254mm H: 109mm C: 39mm

Compare Clear all

Brand	Essen
Connection Size	Solder 1-5/8"
Kv (m3/h)	117.64
Port Size (inch)	1-1/2"
Pressure Equipment Directive	Class 1
Refrigerant	CO2
Service Temp	-40°C to +150°C
