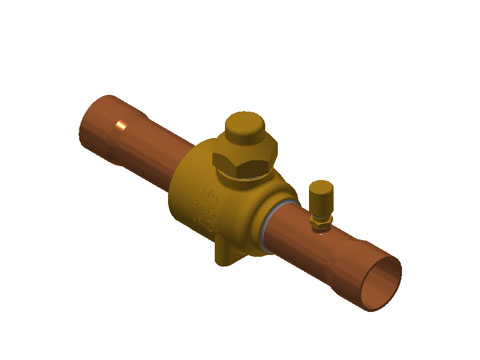

Ball Valve GBC28S with Access Port 1-1/8"ODF (Full Port) - 9L7056

Ball Valve GBC28S with Access Port 1-1/8"ODF (Full Port)

Part Number: 9L7056

Ball Valve GBC28S with Access Port 1-1/8"ODF (Full Port)

Part Number: 9L7056
Danfoss

Sign in to your Aire-Biz account to view pricing and stock levels.

Sign in

Not an Airefrig customer? Complete our online account application form here to apply for a credit account.

  • Ball ValveGBC28S
    Body TypeBrass Body with Copper Extended Tails
    BrandDanfoss
    Connection Type1-1/8" Solder x 1-1/8" Solder (full port/flow)
    Cv Value (based on fluid dynamic equations)71.96 (gal/min)
    Danfoss Code Number009L7056
    Flow DirectionBi-Flow
    Kv Value (based on fluid dynamic equations)62.25 (m3/h)
    Maximum Working Pressure45bar (650 psig)
    Media Temperature Range-40°C to +100°C
    Net Weight (kg)0.9
    Use with Flamable RefrigerantsNo
  • Overall - Length: 208mm & Height: 80mm
