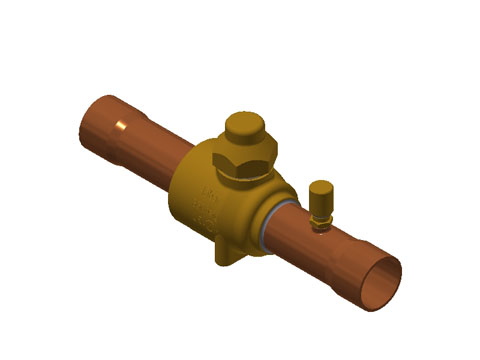

Ball Valve GBC67S with Access Port 2-5/8"ODF (Full Port) - 009L7960
Ball Valve GBC67S with Access Port 2-5/8"ODF (Full Port)
Part Number: 009L7960Ball Valve GBC67S with Access Port 2-5/8"ODF (Full Port)
Part Number: 009L7960Sign in to your Aire-Biz account to view pricing and stock levels.
Sign in Not an Airefrig customer? Complete our online account application form here to apply for a credit account.
Ball Valve | GBC67S |
Body Type | Brass Body with Copper Extended Tails |
Brand | Danfoss |
Connection Type | 2-5/8" Solder x 2-5/8" Solder (full port/flow) |
Cv Value (based on fluid dynamic equations) | 424.69 (gal/min) |
Danfoss Code Number | 009L7960 |
Flow Direction | Bi-Flow |
Kv Value (based on fluid dynamic equations) | 367.38 (m3/h) |
Maximum Working Pressure | 45bar (650 psig) |
Media Temperature Range | -40°C to +100°C |
Net Weight (kg) | 5.8 |
Use with Flamable Refrigerants | No |
Overall - Length: 343mm & Height: 149mm
