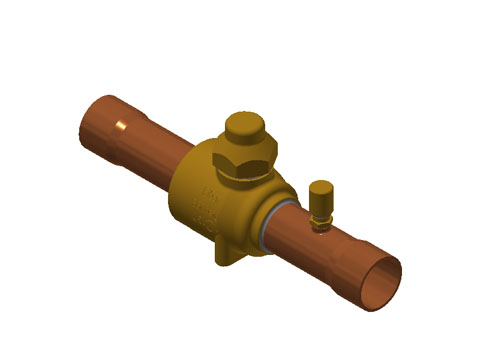

Ball Valve GBC79S with Access Port 3-1/8"ODF (Full Port) - 009L7981

Ball Valve GBC79S with Access Port 3-1/8"ODF (Full Port)

Part Number: 009L7981

Ball Valve GBC79S with Access Port 3-1/8"ODF (Full Port)

Part Number: 009L7981
Danfoss

Sign in to your Aire-Biz account to view pricing and stock levels.

Sign in

Not an Airefrig customer? Complete our online account application form here to apply for a credit account.

  • Ball ValveGBC79S
    Body TypeBrass Body with Copper Extended Tails
    BrandDanfoss
    Connection Type3-1/8" Solder x 3-1/8" Solder (full port/flow)
    Cv Value (based on fluid dynamic equations)611.37 (gal/min)
    Danfoss Code Number009L7981
    Flow DirectionBi-Flow
    Kv Value (based on fluid dynamic equations)528.87 (m3/h)
    Maximum Working Pressure45bar (650 psig)
    Media Temperature Range-40°C to +100°C
    Net Weight (kg)9.1
    Use with Flamable RefrigerantsNo
  • Overall - Length: 416mm & Height: 169mm
