Essen Ball Valve 7/8" - with 1/4" Access Port - 60 Bar

Part Number: RBV22C60

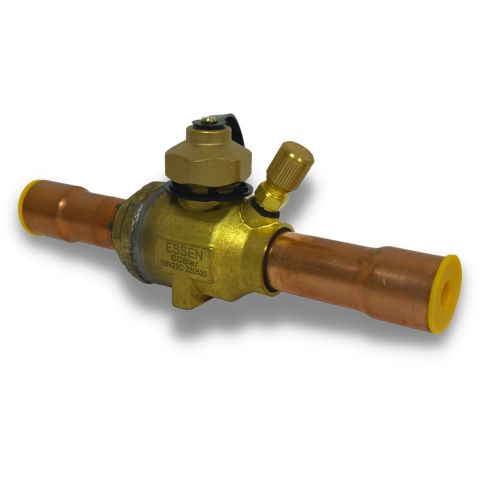

Essen Ball Valve 7/8" - with 1/4" Access Port - 60 Bar

Part Number: RBV22C60
Essen

Sign in to your Aire-Biz account to view pricing and stock levels.

Sign in

Not an Airefrig customer? Complete our online account application form here to apply for a credit account.

  • Essen Ball Valves - With Access Port - 60 Bar

    • Bi-directional application
    • Improved internal parts designed to ensure zero leakage
    • Robust brass body and cap design
    • Temperature rating -40°C to 120°C
    • MWP: 60bar
  • BrandEssen
    Connection SizeSolder 7/8"
    Kv (m3/h)27.98
    Maximum Working Pressure60 bar (870 PSI)
    Port Size (inch)3/4''
    Temperature Range-40°C to +120°C

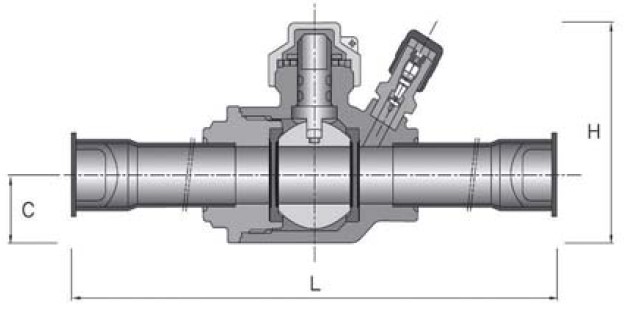

  • L: 184mm H: 69.9mm C: 21mm

    Essen Ball Valve 7/8" - with 1/4" Access Port - 60 Bar
