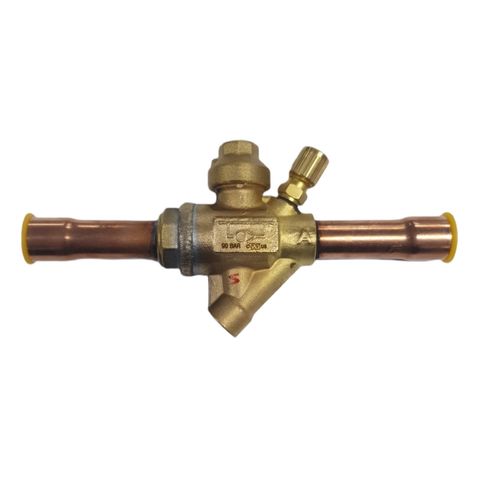

Sporlan EBVT-PR Ball Valve 1-1/8" w/ Check Valve - CO2 90 Bar - EBVTPR1090

BALL VALVE WITH INTEGRAL PRESSURE RELIEF - EBV(T)-PR Series

For greater system design flexibility and increased productivity, specify the EBV(T)-PR Ball Valve with Integrated Pressure Relief. This compact solution eliminates the check valve and associated brazing involved when piping a ball valve and check valve in parallel to protect a system from over pressurization.

• Compact design simplifies installation
• Eliminates the check valve and associated piping, resulting in significant material cost savings
• Decreases braze joints resulting in labor savings and increased productivity
• Minimizes the potential for leaks and decreases nuisance call-backs

FEATURES

• Allows for positive shut-off in one direction and flow in the other direction whenever pressure differential is present. (The integrated pressure relief feature is one direction only.)
• Protects system from pressure spikes when servicing equipment.
• Welded body joint. Factory tested to ensure positive, leak-free performance. Forged brass body construction with extended copper fittings. Optional access fitting versions available.
• Full size ports for unrestricted flow on most sizes, 3/8” (10 mm) through 1-1/8” (28 mm).
• Dual Teflon seals surround the polished, brass ball to prevent leakage. Stem seal and stem washer provide the primary stem seal. Bottom load stem for safety.
• Stainless steel stop plate ensures fully open to fully closed with a 1/4 turn.
• All EBV(T)-PR ball valves may be installed in any position.
• All EBV(T)-PR ball valves use C19400 (K65) copper fitting material.

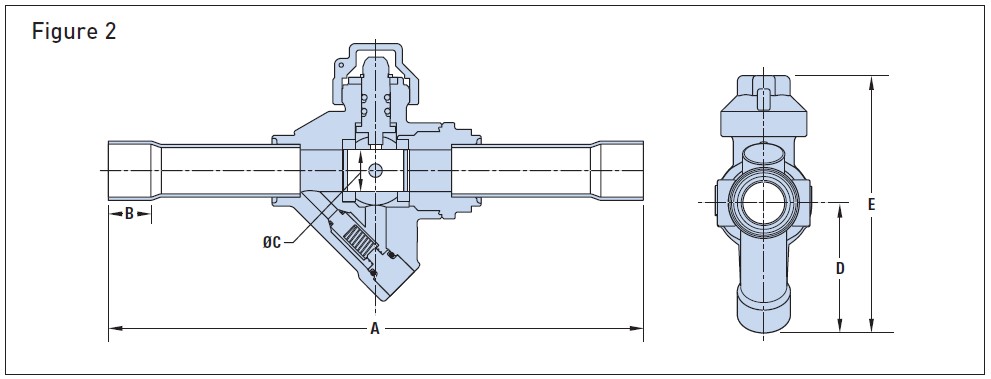

A: 215.9mm B: 23.1mm C: 25.4mm D: 54.1mm E: 104.4mm
