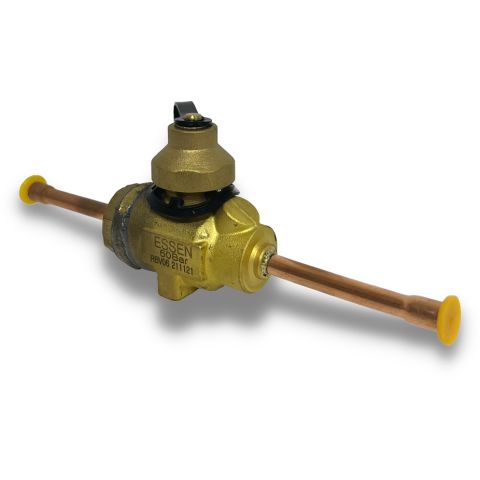

Essen Ball Valve 1/4" Solder - 60 Bar

Part Number: RBV0660

Essen Ball Valve 1/4" Solder - 60 Bar

Part Number: RBV0660
Essen

Sign in to your Aire-Biz account to view pricing and stock levels.

Sign in

Not an Airefrig customer? Complete our online account application form here to apply for a credit account.

  • Essen Ball Valves - Without Access Port - 60 Bar

    • Bi-directional application
    • Improved internal parts designed to ensure zero leakage
    • Robust brass body and cap design
    • Temperature rating -40°C to 120°C
    • MWP: 60bar
  • BrandEssen
    Connection SizeSolder 1/4"
    Kv (m3/h)1.62
    Maximum Working Pressure60 bar (870 PSI)
    Port Size (inch)1/2''
    Temperature Range-40°C to +120°C

    Notes:

    Without Access Port Connection

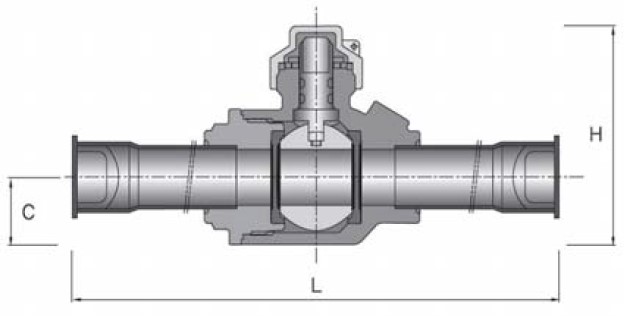

  • L: 165mm H: 54.4mm C: 16mm
