High Pressure Y Dirt Filter - CO2 90 Bar - 1/4" ODF - P92S
High Pressure Y Dirt Filter - CO2 90 Bar - 1/4" ODF
Part Number: P92SHigh Pressure Y Dirt Filter - CO2 90 Bar - 1/4" ODF
Part Number: P92SSign in to your Aire-Biz account to view pricing and stock levels.
Sign in Not an Airefrig customer? Complete our online account application form here to apply for a credit account.

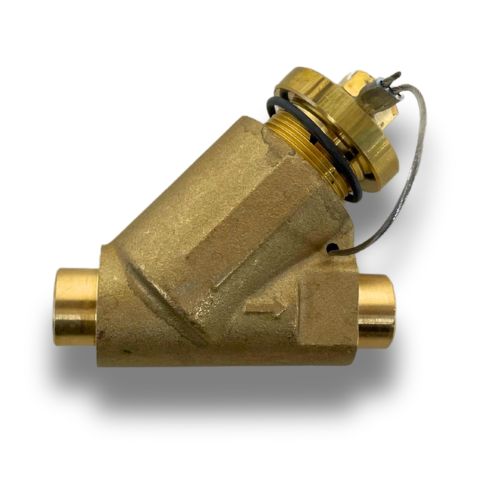

Carly Filtry-P9 Dirt Filters - CO2 Suitable 90 Bar
- Maximal working pressure: up to 90 bar with CO2 in subcritical and transcritical compression systems.
- The stainless steel filtrating sleeve can be removed for cleaning, without removing the filter case and without de-brazing the connections, thus allowing important time savings during maintenance operations.
- Plug can be handled with a flat spanner and fitted with a safety metallic cable.
- Fastening plug in brass, can be handled with a spanner.
- Compact product for ease of assembly in reduced footprint.
- Product is ergonomic for quick maintenance interventions.
- Body made of die-cast brass with brazed connection.
- Filtration preventing propagation within the circuit of particles bigger than 50 microns with a filtration area of 16 cm2.
| Brand | Carly |
| Carly References | FILTRY-P9 2 MMS |
| Connection Size | 1/4" |
| Connection Type | Solder |
| Filtering Surface cm² | 16 |
| Filtering μm | 50 |
| Maximum Working Pressure | 90 Bar |
| Temperature range | -40°C to +100°C |

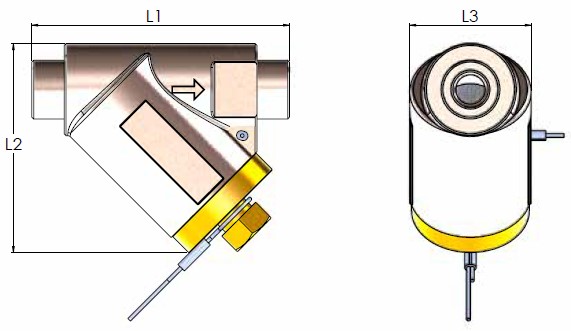

L1: 70mm L2: 58mm L3: 33mm
