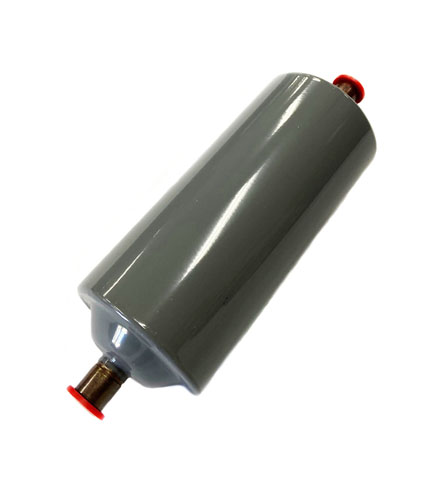

Reversible Drier Heat Pump 1/2" ODS (New Installations) - HPC304S

Reversible Drier Heat Pump 1/2" ODS (New Installations)

Part Number: HPC304S

Reversible Drier Heat Pump 1/2" ODS (New Installations)

Part Number: HPC304S
Sporlan

Sign in to your Aire-Biz account to view pricing and stock levels.

Sign in

Not an Airefrig customer? Complete our online account application form here to apply for a credit account.

  • Drier operates in either flow direction with low pressure drop. Proven metal check valves used in construction -nosynthetic materials. The Sporlan sependable moulded core used for maximum filtration ability. Carefully engineered blend of desiccants for maximum water capacity & acid removal ability. When the flow direction reverses, dirt already collected remains in the filter-drier. The HPC-160-HH Series also has the HH style core with activated charcoal which offers maximum ability to remove oleoresin and other reactive chemical constituents in the lubricants. Same rugged contruction as used in the Catch-All.
  • BrandSporlan
    Connection Size1/2"
    Connection TypeSolder
    Recommended KW17.5 thru 70
    Water Capacity - R22 60PPM - 24°C34.8gm
    Water Capacity - R22 60PPM - 52°C28.4gm
    Water Capacity - R407C 50PPM - 24°C29.3gm
    Water Capacity - R407C 50PPM - 52°C9.4gm
    Water Capacity - R410A 50PPM - 24°C15.1gm
    Water Capacity - R410A 50PPM - 52°C11.4gm

    Notes:

    Water Capacity Ratings: 20 Drops = 1 gram = 1cc. (Ratings at ARI standard conditions)

  • Dia: 76mm Length: 259mm
