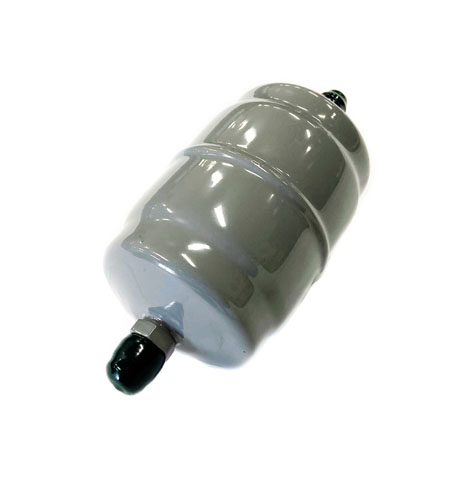

Reversible Drier Heat Pump 5/8" MF (Clean-up after Burnout) - HPC165HH

Reversible Drier Heat Pump 5/8" MF (Clean-up after Burnout)

Part Number: HPC165HH

Reversible Drier Heat Pump 5/8" MF (Clean-up after Burnout)

Part Number: HPC165HH
Sporlan

Sign in to your Aire-Biz account to view pricing and stock levels.

Sign in

Not an Airefrig customer? Complete our online account application form here to apply for a credit account.

  • Drier operates in either flow direction with low pressure drop. Proven metal check valves used in construction -nosynthetic materials. The Sporlan sependable moulded core used for maximum filtration ability. Carefully engineered blend of desiccants for maximum water capacity & acid removal ability. When the flow direction reverses, dirt already collected remains in the filter-drier. The HPC-160-HH Series also has the HH style core with activated charcoal which offers maximum ability to remove oleoresin and other reactive chemical constituents in the lubricants. Same rugged contruction as used in the Catch-All.
  • BrandSporlan
    Connection Size5/8"
    Connection TypeMale Flare
    Dessicant Volume cm³229
    Recommended KW3.5 thru 17.6
    Water Capacity - R22 60PPM - 24°C4.7gm
    Water Capacity - R22 60PPM - 52°C4.1gm
    Water Capacity - R407C 50PPM - 24°C4.5gm
    Water Capacity - R407C 50PPM - 52°C4.4gm
    Water Capacity - R410A 50PPM - 24°C3.5gm
    Water Capacity - R410A 50PPM - 52°C5.0gm

    Notes:

    Water Capacity Ratings: 20 Drops = 1 gram = 1cc. (Ratings at ARI standard conditions)

  • Dia: 76mm Length: 210mm
