Danfoss MMIGRS2 Control Panel - 80G0294
Danfoss MMIGRS2 Control Panel
Part Number: 80G0294Danfoss MMIGRS2 Control Panel
Part Number: 80G0294Sign in to your Aire-Biz account to view pricing and stock levels.
Sign in Not an Airefrig customer? Complete our online account application form here to apply for a credit account.

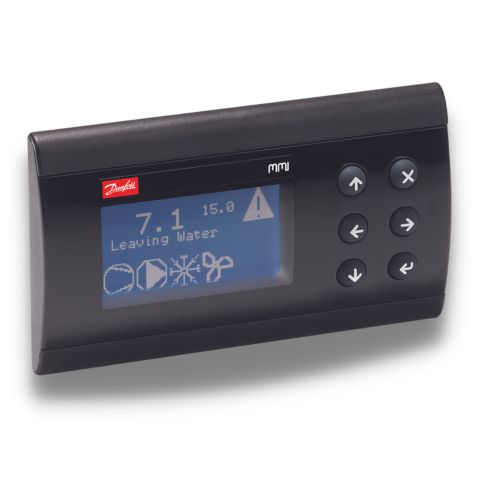

Danfoss Control Panel Type - MMIGRS2
MMIGRS2 is MCX’s family remote interface. It’s fitted with a graphic display that allows a complete customization of the user interface. The connection with every unit of the MCX range is made through the CANbus network. All the information about the user interface is loaded inside the MCX controller; that’s why there is no need of programming the MMIGRS2 interface.
MMIGRS2 is powered externally or from the controller which it is connected to and automatically shows its user interface.
Features:
- Full graphic LCD display, 128 x 64 dots resolution
- Easy connection to MCX CANbus network through telephone plug and CAN connector
- No need to be programmed: information about user interface is loaded from the MCX controller
- Powered by the MCX which it is connected to

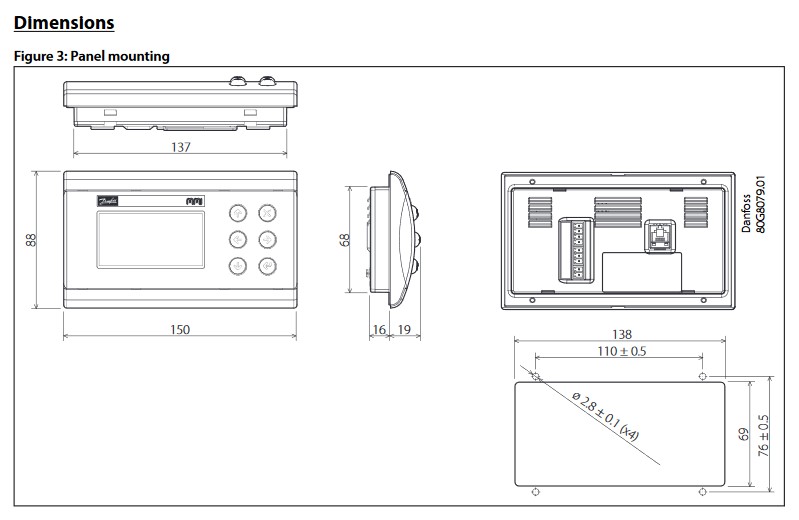

- Dimensions 88 x 150 mm
- Panel mounting
- IP65 protection rating on panel version
Brand | Danfoss |
Communication Type | CANBUS |
Connector Kit Included | Yes |
Danfoss Code Number | 080G0294 |
Display | LCD |
Enclosure Rating | IP65 |
Mounting Method | Panel mounting |
Power Consumption | 1.5W |
Supply voltage [V] AC | 24V |
Supply voltage [V] DC | 12V |
Type | Control Panel |
