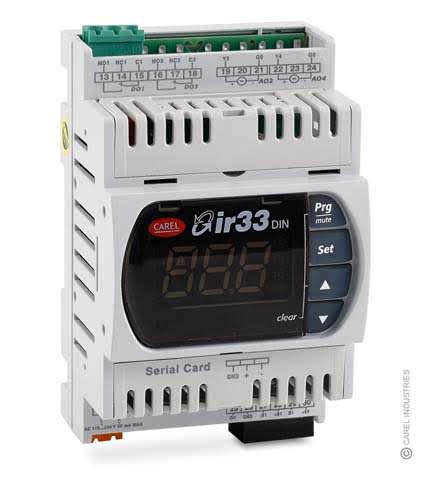

Carel DN33 Low Temperature Control 230Vac - DN33C0HR00

Carel DN33 Low Temperature Control 230Vac

Part Number: DN33C0HR00

Carel DN33 Low Temperature Control 230Vac

Part Number: DN33C0HR00
Carel

Sign in to your Aire-Biz account to view pricing and stock levels.

Sign in

Not an Airefrig customer? Complete our online account application form here to apply for a credit account.

  • ir33 DIN rail (DN33*) is the CAREL proposal for the control of refrigeration units when a solution with DIN rail mounting is required. These devices are completely compatible with the ir33 range in terms of both software and functions. The hardware supplied is very powerful and allows the direct control of up to 2 HP compressors and the management of defrost heaters with 16 A relays. The top-of-the-range version has 5 relays, while all models come as standard with 2 probe inputs and 3 digital inputs (the latter can be configured for probes, if required by the application).

  • ApplicationLow temperature thermostat. Thermostat with Electric/Hot Gas or Passive (air) Defrost, Thermostat with condenser fan management, Heating, Two stage Thermostat with Defrost and rotation, second defrost function, Heat/Cool with deadband.
    BrandCarel
    BuzzerYes
    Cutout Size4 poles
    Display ColourGreen
    Inputs (DI able to be programmed as NTC)2 NTC, 3 DI
    Mounting TypeDIN Rail
    Network CompatibleVia Serial Card (not supplied)
    Number of Output Relays4
    Output DesignationComp, Def, Fan, Aux1
    Power Supply115-230Vac
    Programmable Alarm Output availableYes
    Relay Current10(10)A Comp, 8(4)A Def, 10(4)A Fan, 8(4)A Aux
    Temperature Range (probe dependant)-50T90 °C
    Termination TypeRemoveable Screw Blocks
    TypeTemperature Control
  • 111 x 70 x 60mm
