Carel DN33 Medium Temperature Control - DN33S0EN00

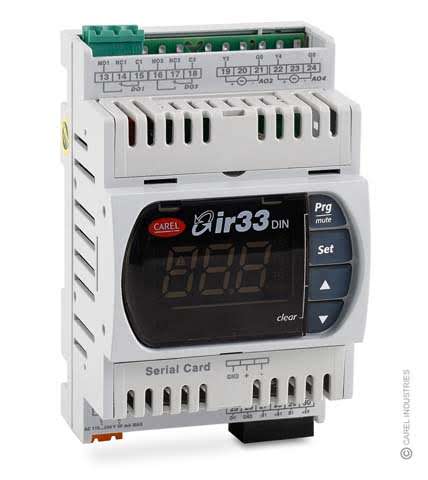

Carel DN33 Medium Temperature Control
Part Number: DN33S0EN00Carel DN33 Medium Temperature Control
Part Number: DN33S0EN00Sign in to your Aire-Biz account to view pricing and stock levels.
Sign in Not an Airefrig customer? Complete our online account application form here to apply for a credit account.
ir33 DIN rail (DN33*) is the CAREL proposal for the control of refrigeration units when a solution with DIN rail mounting is required. These devices are completely compatible with the ir33 range in terms of both software and functions. The hardware supplied is very powerful and allows the direct control of up to 2 HP compressors and the management of defrost heaters with 16 A relays. The top-of-the-range version has 5 relays, while all models come as standard with 2 probe inputs and 3 digital inputs (the latter can be configured for probes, if required by the application).
Application | Medium temperature thermostat. Thermostat with passive (air) defrost, Heating |
Brand | Carel |
Buzzer | Yes |
Cutout Size | 4 poles |
Display Colour | Green |
Inputs | 2 NTC, 3 DI |
Mounting Type | DIN Rail |
Network Compatible | Via Serial Card (not supplied) |
Number of Output Relays | 1 |
Output Designation | Comp |
Power Supply | 230Vac |
Programmable Alarm Output available | No |
Relay Current | 10(4)A Comp |
Temperature Range (probe dependant) | -50T90 °C |
Termination Type | Removeable Screw Blocks |
Type | Temperature Control |
