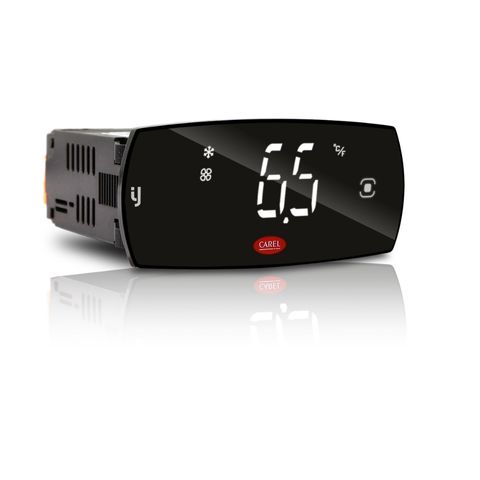

Carel iJW Refrig Temp Controller 230Vac 4 Relay - Small 4B02 - IJWPSA4B02S0523

Carel iJW Refrig Temp Controller 230Vac 4 Relay - Small 4B02

Part Number: IJWPSA4B02S0523

Carel iJW Refrig Temp Controller 230Vac 4 Relay - Small 4B02

Part Number: IJWPSA4B02S0523
Carel

Sign in to your Aire-Biz account to view pricing and stock levels.

Sign in

Not an Airefrig customer? Complete our online account application form here to apply for a credit account.

  • iJW - the refrigeration controller with built-in "wizard"

    Designed for both field replacements and new installations, simple to use thanks to native BLUETOOTH and NFC connectivity. Installers can use their smartphone with APPLICA for configuration, testing and maintenance of the controller, while the end users can optimise everyday tasks (such as recording HACCP data) with CONTROLLA.



    Wide range of applications:

    • Controllers with 2, 4 or 6 relays;
    • Small and Large format;
    • Compatibility with NTC, PTC, PT1000 probes;
    • Humidity measurement and management (optional);
    • RS485 or TTL port for connection to supervisory system;
    • Modbus or CAREL protocol.



    Aesthetics and usability

    Slim and elegant for perfect aesthetic integration and simplified cleaning; capacitive touchscreen and immediate navigation with backlit single function keys.



    New smartphone features for installers:

    • easy controller configuration using the Wizard
    • save, export, edit, share and import favourite configurations;
    • controller and alarm management, direct commands, LIVE graph/temperature log;
    • TEST mode for managing connected loads



  • ApplicationLow or Medium tempreature thermostat. Thermostat with defrost output, Heating Thermostat
    BrandCarel
    BuzzerYes

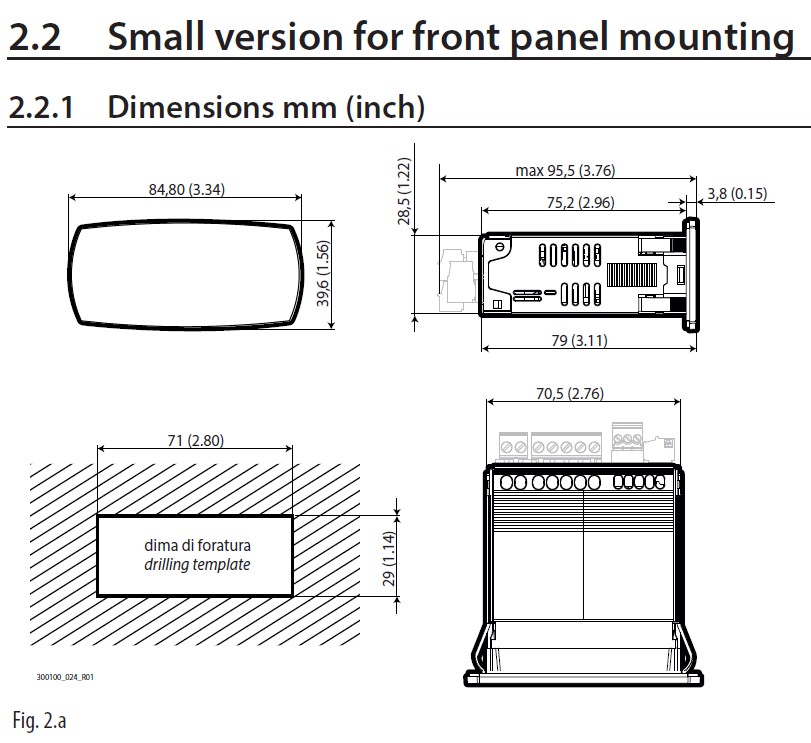

    Cutout Size71 x 29mm
    Display ColourWhite
    iJW Name4B02
    iJW VersionSmall
    Inputs (DI able to be programmed as NTC)2 NTC, 1DI
    Mounting TypePanel
    Network CompatibleVia Serial Card (built in)
    Number of Output Relays4
    Output DesignationComp, Fan, Defrost, Aux
    Power Supply100-230Vac
    Programmable Alarm Output availableYes
    Relay Current2HP 16(8)A Comp, 8(3)A Defrost 5(1)A Aux, 5(1)A Aux.
    Suitable Replacement forIREVC0HN0U, IREVC0HC0U, IR33C0HR00
    Temperature Range (probe dependant)-80T150 °C
    Termination TypeScrew
    TypeTemperature Control
