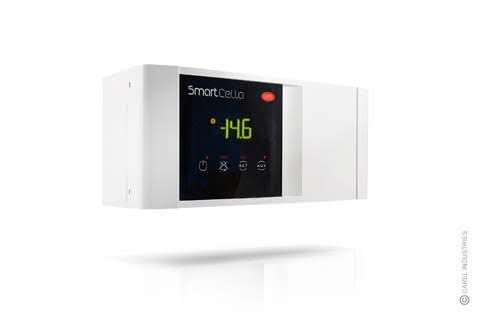

Carel SmartCella Low Temperature Control- Horizontal - WE00C2HN0H

Carel SmartCella Low Temperature Control- Horizontal

Part Number: WE00C2HN0H

Carel SmartCella Low Temperature Control- Horizontal

Part Number: WE00C2HN0H

Sign in to your Aire-Biz account to view pricing and stock levels.

Sign in

Not an Airefrig customer? Complete our online account application form here to apply for a credit account.

  • SmartCella is based on a standard controller integrated in an industrial designed IP65 box. Together with UltraCella and MasterCella, completes and enhances the CAREL offering for cold rooms. In terms of P/Ns, only a couple of models directly related to number of loads to handle, to probes and features necessary to target applications: model with 1 relay for normal temperature NT cold rooms, model with 4 relays for low temperature LT cold rooms.

    I/O configuration:

    • Up to 4 output relays
    • 5 analog inputs (2 x NTC + 3 x NTC / digital inputs)
    • 1 serial with CAREL / Modbus (slave) protocol with auto-recognition
    • SmartCella satisfies all the cold room user, in all the working phases: from installation to commissioning for installers, to daily use for end users.

    In installation phase, installers can take advantage of:

    • Track for DIN rail for fast wall mounting
    • I/O board of ir33 DIN control, more suitable for installation inside box than standard panel controller
    • Standard and already well known ir33 DIN wiring diagrams
    • SmartCella is easy to commission and use in daily work thanks to:
    • The same ir33+ logic about regulation algorithms, navigation and parameters
    • Simple and user-friendly user interface, with touch keypad and large buttons; feature/button matching is the same as ir33+.

    Display is large and bright (+30% compared to ir33) and it shows contextual messages on during navigation.

    SmartCella is easily expandable with additional contents thanks to the choice to use the UltraCella expansion module box. In addition to providing IP65 protection and family-feeling with the UltraCella platform, this choice allows free space available inside the box for:

    • External relays
    • Contactor
    • Auxiliary terminals

    and to have add-on contents coming from the UltraCella platform:

    • Ultra EVD module
    • Ultra Power module
  • ApplicationLow temperature thermostat. Thermostat with Electric/Hot Gas or Passive (air) Defrost, Thermostat with condenser fan management, Heating, Two stage Thermostat with Defrost and rotation, second defrost function, Heat/Cool with deadband.
    Cutout Sizen/a
    Display ColourGreen
    Inputs (DI able to be programmed as NTC)2 NTC, 3 DI
    IP RatingIP65 (front panel)
    Mounting TypeSurface/Wall
    Number of Output Relays4
    Output DesignationComp, Def, Fan, Aux1
    Power Supply230Vac
    Programmable Alarm Output availableYes
    Relay Current10(10)A Comp, 10(4)A Def, 8(4)A Fan, 8(4)A Aux
    Temperature Range (probe dependant)-50T90 °C
    Termination TypeScrew
    TypeTemperature Control
