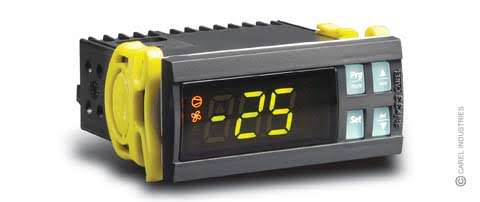

Carel T/Stat 115/230V AC LESS PROBE(ORFORD SPEC.) - IRORC0HH22

Carel T/Stat 115/230V AC LESS PROBE(ORFORD SPEC.)

Part Number: IRORC0HH22

Carel T/Stat 115/230V AC LESS PROBE(ORFORD SPEC.)

Part Number: IRORC0HH22
Carel

Sign in to your Aire-Biz account to view pricing and stock levels.

Sign in

Not an Airefrig customer? Complete our online account application form here to apply for a credit account.

  • ir33+ is the new range of controllers for catering, ice cream parlours, patisseries, bars and restaurants.
    Special focus has been placed on the user interface: as well as the larger display (27% larger than ir33), ON/OFF function, only the main functions have been highlighted, typically those accessed most by the user. There is also a special alarm icon with direct muting of the buzzer.
    The main functions are highlighted, such as set point display and auxiliary output activation, while other, less frequent functions for the end user, such as installation parameter settings, are in the background.

  • ApplicationOrford Cabinet Control
    BrandCarel
    BuzzerYes
    Cutout Size71 x 29mm
    DisplayGreen
    Inputs2 NTC, 2 DI
    IP RatingIP65
    Mounting TypePanel
    Network CompatibleVia Serial Card (not supplied)
    Number of Output Relays4
    Output DesignationComp, Defrost, Fan, Aux
    Power Supply115-230VAC
    Programmable Alarm Output availableYes
    Relay Current10 (10) A Comp, 8 (4) Fan, 8 (4) Defrost, 8 (4) Aux
    Temperature Range-50T90 °C
    Termination Type2 x Spade, Removeable Plug Connectors
    TypeTemperature Control

    Notes:

    Orford Cabinet control. 10amps AC3 compressor relay and customised software
