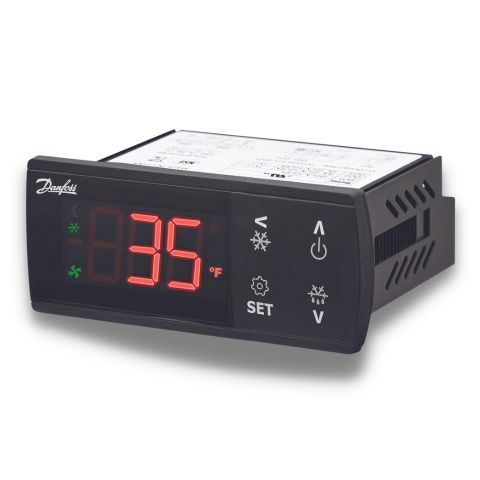

ERC 214 Controller 230V 4 Relays - 80G3295

ERC 214 Controller 230V 4 Relays

Part Number: 80G3295

ERC 214 Controller 230V 4 Relays

Part Number: 80G3295
Danfoss

Sign in to your Aire-Biz account to view pricing and stock levels.

Sign in

Not an Airefrig customer? Complete our online account application form here to apply for a credit account.

  • Danfoss ERC 21X Temperature Controller Series



    Thermostat

    • On/Off thermostat

    • Day/night, continuous cycle, emergency mode

    • Pre-installed applications

    • Compatible with wide range of sensors (NTC 5K and 10K, Pt1000, PTC)

    Defrost

    • Natural, electrical and hot gas defrost

    • Defrost on demand

    • Start via front button, DI input or time interval

    • Stop on time, temperature or front button

    Compressor

    • Zero cross switching technology

    • Voltage protection

    • Anti-cycle timers for optimum compressor protection

    Evaporator Fan

    • Zero cross switching technology

    • Fan delay function

    • Smart evaporator fan management for energy saving

    • Fan stop at high evaporator temperature

    Alarms

    • High and low temperature alarm

    • Sensor failure alarm

    • High and low voltage alarm

    • Condenser cleaning alarm

    • Door open alarm

    • External alarm input Multi-purpose DI input

    • Two Multipurpose DI input for defrost start

    • Day/night control, main switch

    • Reference displacement

    • Continuous cycle control

    Display & Programming

    • Bigger and high efficient LED display

    • Display temperatures in ‘C /’F

    • Parameter settings/readouts and alarm conditions can be read on the display

    Other functions

    • Password protection

    • Door function with alarm monitoring

    • Delay of outputs at power up

    • Keypad lock and unlock feature

    • Galvanic Isolation

  • BrandDanfoss
    Danfoss Code Number080G3295
    DisplayLED 3-figure display in red
    InputsSensor inputs, Digital inputs, Programming key
    Measuring Range-40 – 105 °C
    Output - 1x Compressor relay DO116 A, 10 FLA 230 V
    Output - 1x Defrosting relay DO28 A, 2 FLA 230 V
    Output - 1x Fan relay DO33 A, 2 FLA 230 V
    ProtectionFront: IP65 (with seal), Rear: IP00
    Refrigeration ControllerERC 214
    Sensors IncludedNo
    Supply Voltage230 V AC
    Types of Sensors AllowedNTC, PTC, PT1000
