Carel Fan Speed Power board 20 A 3Ø - FCR3204020
Carel Fan Speed Power board 20 A 3Ø
Part Number: FCR3204020Carel Fan Speed Power board 20 A 3Ø
Part Number: FCR3204020Sign in to your Aire-Biz account to view pricing and stock levels.
Sign in Not an Airefrig customer? Complete our online account application form here to apply for a credit account.

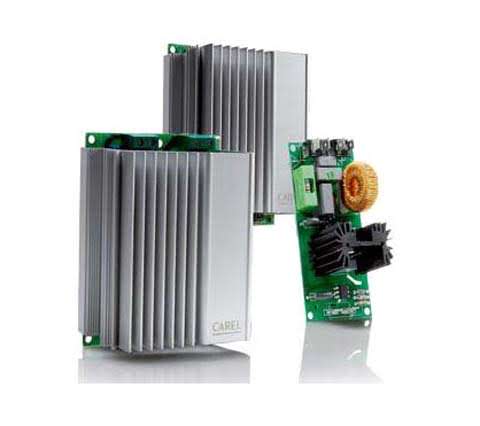

The FCR3 devices are slave microprocessor controllers that manage three-phase asynchronous motors. The are mainly used to control condenser fan motors on refrigeration units. The control signal may be analogue 0 to 10 V, PWM, 0 to 20 mA or Modbus RTU over RS485 serial; the devices also feature a digital input and a digital output for alarm management.
The serial port is used for remote supervision of all the parameters in the controlled system. Up to 255 addresses can be set on the Modbus network.
| Application | Fan Speed Control |
| Brand | Carel |
| Buzzer | No |
| Display | No |
| Inputs | 1AO (0-5VDC,0-10VDC,4-20mA) |
| IP Rating | IP55 |
| Mounting Type | Surface |
| Network Compatible | Built in RS485 |
| Number of Output Relays | 1AO 3Ø 0-400VAC |
| Output Designation | Fan |
| Power Supply | 400VAC |
| Programmable Alarm Contact | Yes |
| Relay Current | 20A |
| Termination | Screw |
| Type | FCR Fan Speed |
