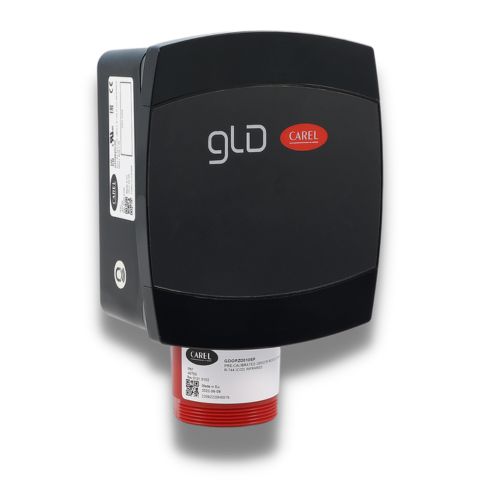

Carel GLD Small - Gas Leak Detector - Group 4 - Built In - GDSBI20C00

Carel GLD Small - Gas Leak Detector - Group 4 - Built In

Part Number: GDSBI20C00

Carel GLD Small - Gas Leak Detector - Group 4 - Built In

Part Number: GDSBI20C00
Carel

Sign in to your Aire-Biz account to view pricing and stock levels.

Sign in

Not an Airefrig customer? Complete our online account application form here to apply for a credit account.

  • Carel GLD Small Series - Refrigerant Gas Leak Detectors

    The CAREL GD* Small (Small (P/Ns GDSB* & GDSR*) series gas leakage detectors guarantee monitoring in rooms where there is a risk of gas leakages due to the installation of refrigerated units, providing prompt notification and thus ensuring cost savings by avoiding system stoppages.

    When a leakage above a certain concentration is detected, the sensor sends a signal to the connected controller or supervisor. Available in versions with semiconductor sensitive element and infrared for CO2. To the list of gases detected, refer to the technical manual.

    Advantages

    Preventing refrigerant gas leakages brings the following advantages:

    • no system downtime or significant economic costs due to poor food preservation;

    • help reduce greenhouse gas emissions;

    • monitor the environment where the refrigerated units are installed.



    The device is integrated into the CAREL supervisory system, offering all the advantages of local and remote supervision.

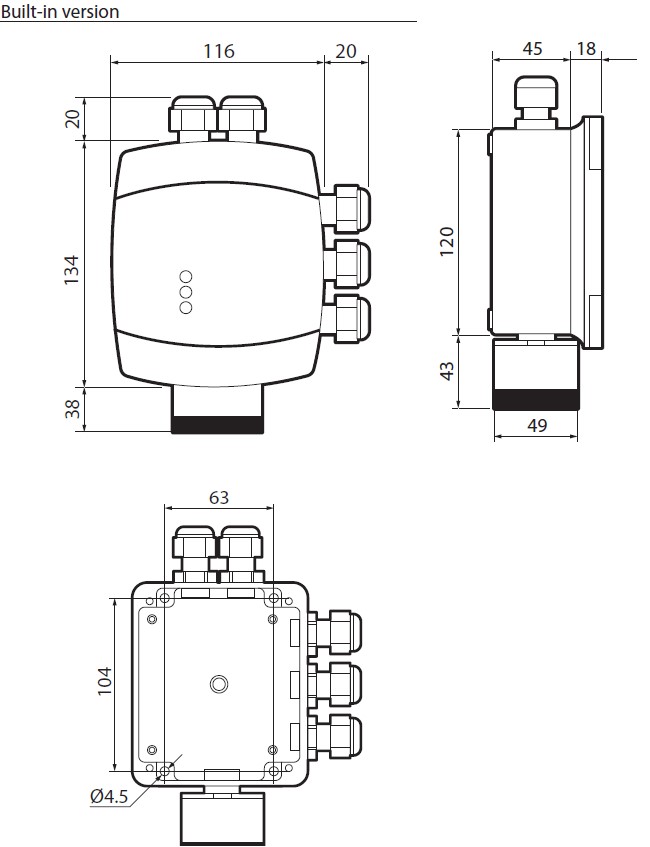

    Available in the built-in version or with remote sensor.



  • Analogue Output4-20mA / 0-10V / 1-5V / 2-10V selected via software
    BrandCarel
    Communication TypeModbus® RS485
    Default GasR744 (CO2)
    Digital output 1 SPDTAlarm - relay 1 A/24 Vdc/ac
    Digital output 2 SPDTWarning/FAULT - relay 1 A/24 Vdc/ac
    GLD Sensor Module Group4
    Group 4 Refrigerant Gas DetectedR744 (CO2)
    IP RatingIP67
    Power Supply24Vdc/ac +/-20% 50/60 Hz
    Range of Measurement0-10000 ppm
    Sensor TypeBuilt in
    TechnologyInfrared
    Temperature Range (probe dependant)-40 to +50°C
    TypeGLD Small
    User InterfaceApp with Bluetooth
    Weight590g
  • Carel GLD Small - Gas Leak Detector - Group 4 - Built In
