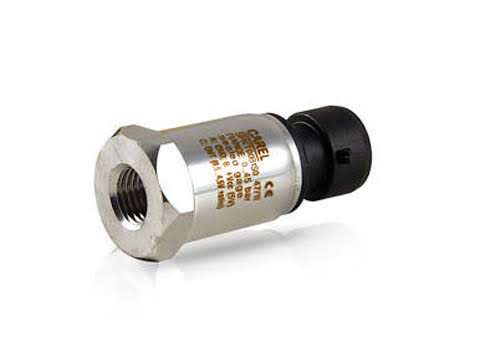

Pressure Transducer 4-20mA 0-44.8Bar - SPKT00B1C3
Pressure Transducer 4-20mA 0-44.8Bar
Part Number: SPKT00B1C3Pressure Transducer 4-20mA 0-44.8Bar
Part Number: SPKT00B1C3Sign in to your Aire-Biz account to view pricing and stock levels.
Sign in Not an Airefrig customer? Complete our online account application form here to apply for a credit account.
These pressure transducers provide a standard analogue current signal (4 to 20 mA).
They are used mainly in refrigeration and air-conditioning applications to measure the pressure in the refrigerant circuits, however their high performance also makes them ideal for many other applications. These probes can also be used in refrigerant circuits containing ammonia. Comes with built in valve depressor.
| Application | Pressure transducer |
| Brand | Carel |
| Cable Length (mm) | n/a |
| Cable Type | Plug connector |
| IP Rating | IP67 |
| Mounting Type | 1/4SAE c/w depressor (7/16" 20UNF) |
| Sensor Length (mm) | 54.2mm |
| Sensor Material | 316L stainless steel |
| Termination Type | Packard Plug SPKC plug connection and cable |
| Type | Pressure Transducer 4-20mA analogue |
| Working Range | 0.0-44.8 barg |
Notes:
Requires SPKC connection cable. R410A, R744, R717 ammonia compatible
