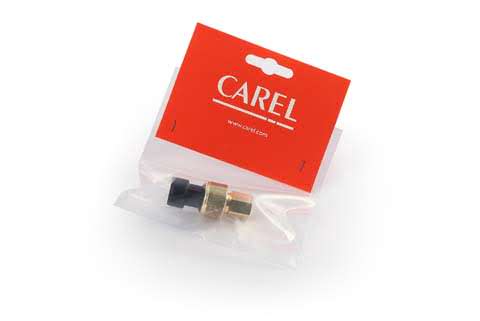

Pressure Transducer Ratiometric 0-5Volt. 0-45Bar - SPKT00B6P3
Pressure Transducer Ratiometric 0-5Volt. 0-45Bar
Part Number: SPKT00B6P3Pressure Transducer Ratiometric 0-5Volt. 0-45Bar
Part Number: SPKT00B6P3Sign in to your Aire-Biz account to view pricing and stock levels.
Sign in Not an Airefrig customer? Complete our online account application form here to apply for a credit account.
These pressure transducers provide a 0 to 5 V ratiometric signal. These can be used in air-conditioning and refrigeration systems, excluding those containing ammonia.
Available with female fitting only. Comes with valve depressor built in.
Application | Pressure transducer |
Brand | Carel |
Cable Length (mm) | n/a |
Cable Type | Plug connector |
IP Rating | IP65 |
Mounting Type | 1/4SAE c/w depressor (7/16" 20UNF) |
Sensor Length (mm) | 51.6mm |
Sensor Material | Plated Steel |
Termination Type | Packard Plug SPKC plug connection and cable |
Type | Pressure Transducer 0-5V ratiometric |
Working Range | 0.0-45 barg |
Notes:
Requires SPKC connection cable. Suitable for R410A, R744
