Pressure Transmitter AKS 3000 -1-12 Bar - 60G1323

Pressure Transmitter AKS 3000 -1-12 Bar

Part Number: 60G1323

Pressure Transmitter AKS 3000 -1-12 Bar

Part Number: 60G1323

Sign in to your Aire-Biz account to view pricing and stock levels.

Sign in

Not an Airefrig customer? Complete our online account application form here to apply for a credit account.

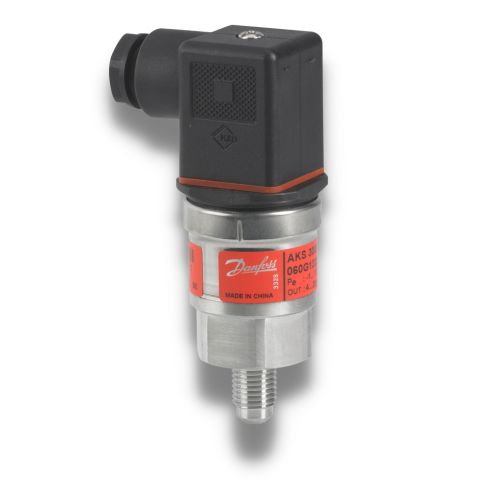

  • Danfoss AKS 3000 Pressure transmitter

    AKS 3000 is a series of absolute transmitters with high-level signal conditioned current output, developed to meet demands in A/C and refrigeration applications.

    AKS 3000 utilizes the proved piezoresistive measuring principle, which has been used for decades in Danfoss pressure transmitters.The pressure reference is a sealed gauge. This means that atmospheric pressure variations have no influence on regulating accuracy. A must in accurate low pressure regulation.

    All materials in contact with the refrigerant and materials for the housing are AISI 316L stainless steel. No soft gaskets, all environmental sealings are made through laser weldings only.

    AKS 3000 has a 4 – 20 mA output, and is available with spade terminals for EN 175301-803 plug.

  • BrandDanfoss
    Danfoss Code Number060g1323
    Electrical connectionDIN-plug
    Output signal [mA] [Max]20 mA
    Output signal [mA] [Min]4 mA
    Pressure connection1/4 in Male flare
    Pressure range-1 -12 bar (-14.5 - 174.05 psi)
    Pressure TransmitterAKS 3000
    Supply voltage [V] DC [Max]30 V
  • Pressure Transmitter AKS 3000 -1-12 Bar
