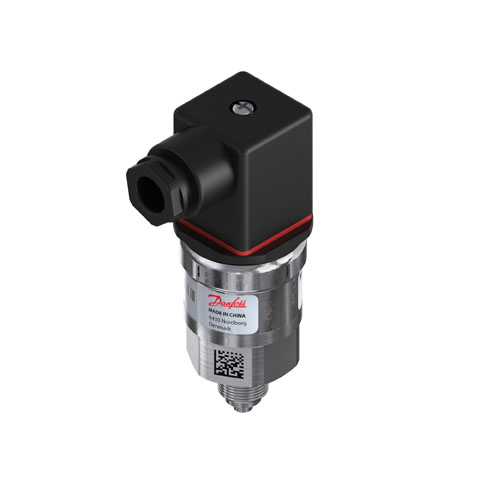

Pressure Transmitter MBS 3000 - 0-6 bar - 60G1101

Pressure Transmitter MBS 3000 - 0-6 bar

Part Number: 60G1101

Pressure Transmitter MBS 3000 - 0-6 bar

Part Number: 60G1101
Danfoss

Sign in to your Aire-Biz account to view pricing and stock levels.

Sign in

Not an Airefrig customer? Complete our online account application form here to apply for a credit account.

  • Danfoss Pressure transmitter Type MBS 3000


    The compact pressure transmitter, type MBS 3000, is designed for use in industrial and hydraulic applications, and offers a reliable pressure measurement, even under harsh environmental conditions.

    The flexible pressure transmitter programme covers different output signals, absolute or gauge (relative) versions, measuring ranges from 0 – 1 to 0 – 600 bar. A wide range of pressure and electrical connections are available.

    Excellent vibration stability, robust construction, and a high degree of EMC/EMI protection equip the pressure transmitter to meet the most stringent industrial requirements.



    Features

    • Designed for use in severe industrial and hydraulic environments
    • Resistant to cavitation, liquid hammer and pressure peaks (MBS 3050)
    • Enslosure and wetted parts of acid-resistant stainless steel (AISI 316L)
    • Pressure ranges in relative (gauge) or absolute from 0 up to 600 bar
    • All standard output signals: 4 – 20 mA, 0 – 5 V, 1 – 5 V, 1 – 6 V, 0 – 10 V, 1 – 10 V, Ratiometric output signal: 10-90% of supply voltage
    • A wide range of pressure and electrical connections
    • Fully digitally compensated
    • For use in ATEX zone 2 explosive atmospheres
    • UL approved
  • BrandDanfoss
    Danfoss Code Number060G1101
    Electrical connectionDIN-plug
    Output signal [mA] [Max]20 mA
    Output signal [mA] [Min]4 mA
    Pressure connection1/4 in Male BSP
    Pressure range0 - 6 bar (0 - 87 psi)
    Pressure TransmitterMBS 3000
    Supply voltage [V] DC [Max]30 V
  • Pressure Transmitter MBS 3000 - 0-6 bar
