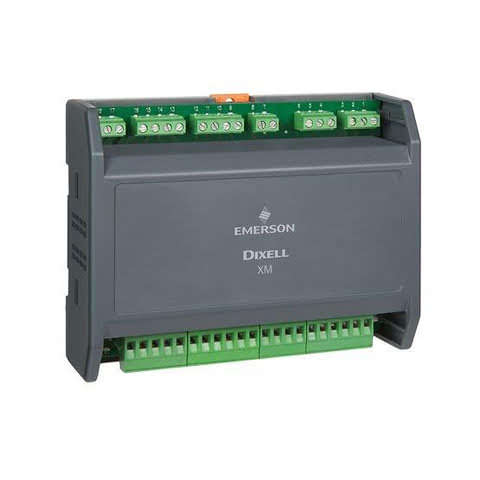

CPC Multifunction Controller for MT & LT Ventilated App - XM670K

CPC Multifunction Controller for MT & LT Ventilated App

Part Number: XM670K

CPC Multifunction Controller for MT & LT Ventilated App

Part Number: XM670K

Sign in to your Aire-Biz account to view pricing and stock levels.

Sign in

Not an Airefrig customer? Complete our online account application form here to apply for a credit account.

  • Advanced Multifunction Controller For NT & LT Ventilated Applications With On/Off Electronic Valve Management

    • Efficient case control thanks to device synchronization (up to 8) by local LAN
    • Optimized management of stepper or pulse electronic expansion valves
    • Low environmental impact (CO2, R407C and R407F compatible)
    • Energy saving through case optimization with auto-adaptive control of superheat
    • Energy consumption reduction thanks to ECI fan management via PWM or 0÷10V output
    • Anti-sweat heater management through a ”DEW POINT”
    • Virtual probe management
    • Keyboard with direct access to the main functions
    • Internal Real Time Clock
    • Hot Key for quick and easy programming
  • 20VA maxDisplay
    Accuracy (at ambient temperature)±0.5°C ±1 digit
    Data storingon the non-volatile memory (EEPROM)
    Digital inputs3 x configurable
    GeneralKeyboard: 6 push buttons (on CH660, T660H)
    Measuring and regulation rangeNTC probe: -40÷110°C, PTC probe: -50÷150°C, PT1000 probe: -100÷100°C
    Operating temperature0÷60 °C
    OtherHot Key / Prog Tool Kit output: present - Serial output: RS485 optional - 4÷20mA/0÷10V output: optional - PWM output: optional - Remote display output: optional - Buzzer: on keyboard - Real time clock: present - Connection kit: XM-FC16
    Power supply110, 230Vac
    Probe inputsThermostat: NTC, Pt1000 - Defrost: NTC, Pt1000 - Display: NTC, Pt1000 - AUX: NTC, Pt1000
    Relative humidity20÷85% (no condensing)
    Relay outputsCompressor/Valve: 5A - Defrost: 16A - Fans: 8A - Light: 16A - Alarm: 8A - AUX: 8A
    Resolution0.1°C or 1°C
    Storage temperature-25÷60°C
