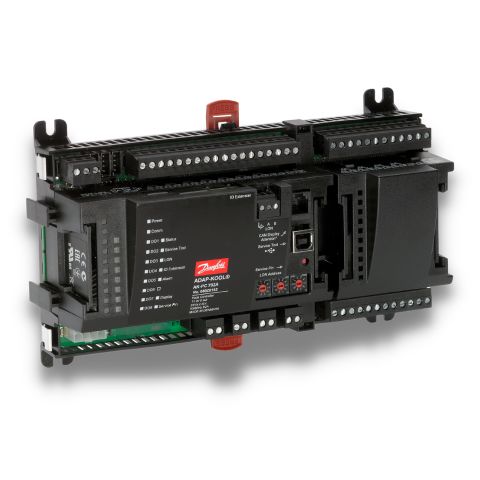

  • Danfoss AK-PC 782A, Capacity controller for transcritical CO2 booster control


    AK-PC 782A are complete regulating units for capacity control of compressors and condensers in a transcritical CO2 booster system with parallel compressor. The controller is with oil management, heat recovery function and CO2 gas pressure control.

    In addition to capacity control, the controllers can give signals to other controllers about the operating condition, e.g. forced closing of expansion valves, alarm signals and alarm messages. The controller’s main function is to control compressors and condensers so that operation all the time takes place at the energy-optimum pressure conditions. Both suction pressure and condensing pressure are controlled by signals from pressure transmitters.

    Capacity control must be carried out by suction pressure P0. (The P0 signal for the parallel compressor is supplied by the pressure transmitter on the receiver).


    Among the different functions are:

    • Capacity control of up to 10 compressors on MT and 8 on IT
    • Capacity control of up to 4 compressors on LT
    • Up to 3 unloaders for each compressor
    • Control of oil separator and oil receiver
    • Speed control of one or two compressors in each group
    • Up to 6 safety inputs for each compressor
    • Option for capacity limitation to minimize consumption peaks
    • If the compressor does not start, signals can be transmitted to other controllers so that the electronic expansion valves will be closed
    • Regulation of liquid injection into suction line
    • Safety monitoring of high pressure / low pressure / discharge temperature
    • Capacity control of up to 8 fans
    • Floating reference with regard to outside temperature
    • Heat recovery function
    • CO2 gas cooler control and receiver control
    • Ejector regulation: HP, LE (liquid)
    • Safety monitoring of fans
    • The status of the outputs and inputs is shown by means of light-emitting diodes on the front panel
    • Alarm signals can be generated via data communication
    • Alarms are shown with texts so that the cause of the alarm is easy to see.
    • Plus some completely separate functions that are totally independent of the regulation – such as alarm, thermostat, pressure and PI-regulating functions



  • Analog inputs (AI)11
    BrandDanfoss
    Capacity controllerAK-PC 782A
    Danfoss Code Number080Z0192
    Digital outputs (DO)8
    Fan capacity controlStep/ Speed
    Fan control modePI
    Number of Compressors max.10
    Number of Fans max.8
    Oil managementYes, with CO2
    Supply voltage [V] AC24V
