  • Danfoss Programmable controller, 6 relays Type MCX061V

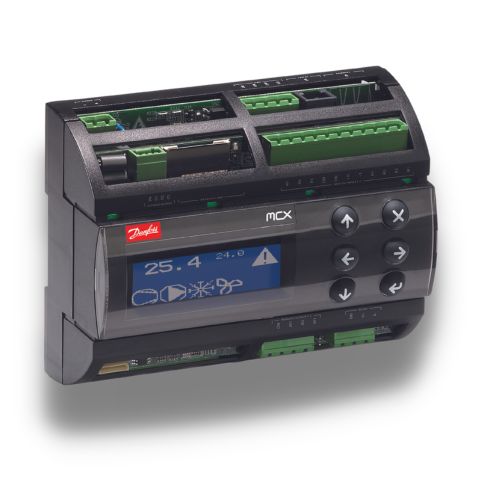

    MCX061V is a standard MCX electronic controller with one integrated electronic expansion valve driver. It is available in the version with graphic LCD display and 110 / 230V AC or 24 V AC power supply. It holds all the typical functionalities of MCX controllers in the compact size of 8 DIN modules:


    • Programmability
    • Connection to the CANbus local network
    • Modbus RS485 serial communication interface


    It is moreover fitted with a slot for memory card SD / MMC and Ethernet connection. The memory card assures SW download and datalogging function; the Ethernet port allows the SW download, monitoring with web pages, datalogging and the alarms warning.


    Features:

    • 7 analog and 8 digital inputs
    • 3 analog and 6 digital outputs
    • Power supply 24 V AC and 110 V / 230 V AC
    • Drives bipolar and unipolar electronic expansion valves
    • SD / MMC card slot for easy software upload and datalogging
    • Remote access to data through CANbus connection for additional display and keyboard
    • RTC clock for managing weekly time programs and data logging information
    • Ethernet / WebServer option
    • Modbus RS485 opto-insulated serial interface
    • Available with graphic LCD display for showing the desired information

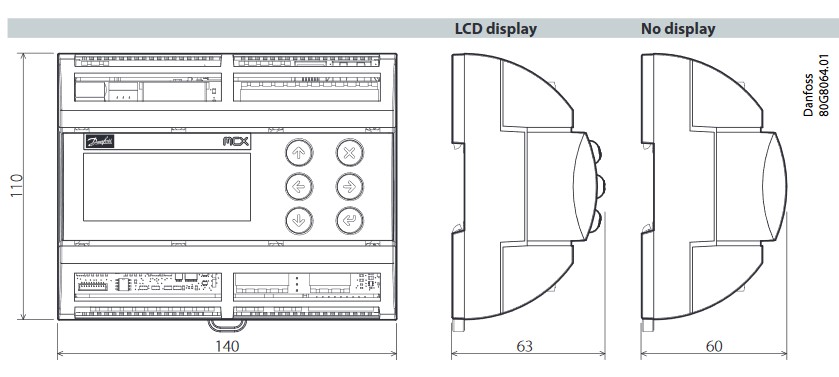

    • Dimensions 8 DIN modules
  • Analog inputs7
    Analog outputs3
    BrandDanfoss
    Communication typeCANBUS, MODBUS, RS485
    Danfoss Code Number080G0250
    Digital Inputs8
    Digital outputs6
    DisplayLCD
    Enclosure Rating IPIP40
    Programmable ControllerMCX061V
    Supply voltage230V
    Weight0.38kg
