Evaporator Pressure Regulator - 0-100PSI - 1-3/8" ODS - SORITPI311S010

Evaporator Pressure Regulator - 0-100PSI - 1-3/8" ODS

Part Number: SORITPI311S010

Evaporator Pressure Regulator - 0-100PSI - 1-3/8" ODS

Part Number: SORITPI311S010
Sporlan

Sign in to your Aire-Biz account to view pricing and stock levels.

Sign in

Not an Airefrig customer? Complete our online account application form here to apply for a credit account.

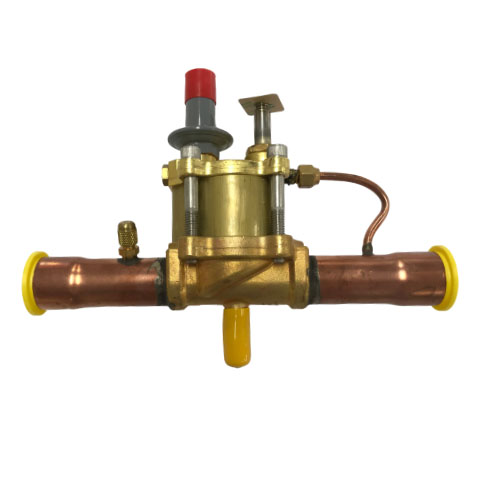

  • The Sporlan Type (S)ORIT-PI evaporator regulating valves have a brass body and extended copper connections. They are available with a range of adjustable settings and pressure tap. The primary function of these valves, referred to as EPR valves, is to prevent the evaporator pressure from falling below a predetermined value or setting. Each valve is factory tested to ensure positive leak-free performance.


    Features and Benefits:

    • (S)ORIT-PI is internally piloted. No need for high side pilot
    • (S)ORIT-PI has optional electric open feature for "two temperature control"
    • (S)ORIT-PI has manual llft stem to allow system evacuation
    • Range of adjustable settings up to 150 psi
    • Optional solenoid feature to close valve during defrost
    • Design working pressure for the (S)ORIT-PI valves is 400 psi (27.6 bar)


  • Adjustment Range0-100 psig
    BrandSporlan
    Connection SizeSolder 1-3/8"
    Maximum Test Pressure400 psig
    Port Size3/4"
    Sporlan Part Number149039

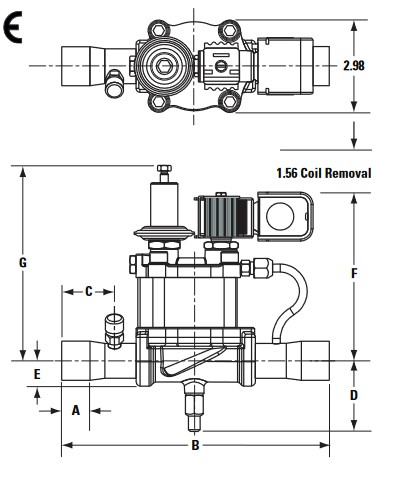

  • A: 25.4mm B: 27.7mm C: 64.5mm D: 57.9mm E: 18.3mm F: 133.4mm G: 160mm

    Evaporator Pressure Regulator - 0-100PSI - 1-3/8" ODS
