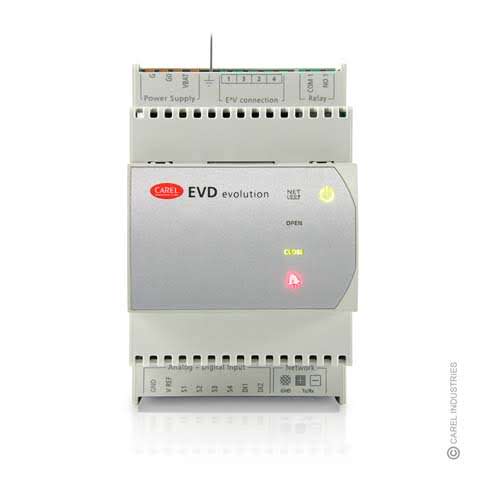

Carel Evo Driver for EEV (RS485) - Universal valve Driver - EVD0000E20

Carel Evo Driver for EEV (RS485) - Universal valve Driver

Part Number: EVD0000E20

Carel Evo Driver for EEV (RS485) - Universal valve Driver

Part Number: EVD0000E20

Sign in to your Aire-Biz account to view pricing and stock levels.

Sign in

Not an Airefrig customer? Complete our online account application form here to apply for a credit account.

  • The EVD Evolution series electronic valve controllers are the latest stage in the development of the renowned CAREL drivers for superheat control.

    Compared to the standard EVD drivers, these devices feature advanced functions and a new user interface that makes them even easier to use and configure.

    A new graphic display and a simple programming procedure mean the controller can be started after selecting just four parameters (and just three if using the device to control Carel valves): refrigerant, valve mode, type of pressure probe and type of application (chiller, display case, etc.), chosen from a multiple choice menu.

    Main functions:

    • superheat control with high pressure, low pressure and low superheat protection
    • assisted start-up procedure (selecting just 4 parameters)
    • connection diagram shown on the display
    • removable graphic LCD, multi-language interface with online help for the parameters and SI or imperial units of measure
    • user management with password to access different configuration levels
    • copy parameter values to different EVD devices from the display
    • LEDs for monitoring the main parameters
    • use of low-power ratiometric pressure transducers with 4 to 20 mA output (these can be shared between several drivers)
    • second digital input for defrost management
    • possibility to use backup probes

    Combined with CAREL ExV series electronic expansion valves, the EVD Evolution drivers make up an integrated control system that optimises evaporator operation and obtains high energy savings.

  • ApplicationElectronic TX valve
    Inputs1 NTC, 1DI, 0-5V or 4-20mA
    Mounting TypeDIN Rail
    Network CompatibleBuilt in RS485
    Number of Output Relays1
    Output DesignationSolenoid or Alarm
    Power Supply12-24VAC Min 20VA-100VA
    Programmable Alarm Output availableYes
    Relay Current5 (2) A
    Temperature Range (probe dependant)-50T115 °C
    Termination TypeScrew
    TypeEVD EVO
    Valves able to usedUniversal- Various Brands


    Evo Driver only, requires probes, transducer and cables. Min 20Va power supply, with ultracap 40Va please confirm valve compatiblility requirements
