Carel E2V-Z Valve Kit, Size 18, 1/2" Connections - E2V18ZWF13

Carel E2V-Z Valve Kit, Size 18, 1/2" Connections

Part Number: E2V18ZWF13

Carel E2V-Z Valve Kit, Size 18, 1/2" Connections

Part Number: E2V18ZWF13

Sign in to your Aire-Biz account to view pricing and stock levels.

Sign in

Not an Airefrig customer? Complete our online account application form here to apply for a credit account.

  • The CAREL E2V electronic expansion valves for low capacity applications combine high reliability and precise control, guaranteed by the equal percentage characteristic of the movable element and the 15 mm stroke without axial rotation.
    The wide range available can cover all applications that require cooling capacities up to 40 kW. The possibility of operation with fluid flow in both directions is especially useful when the valve is used for heat pump applications, moreover simplifying refrigerant circuit layout and reducing installation costs. Fitted on all sizes, the Teflon gasket on the movable element guarantees perfect tightness on closing.
    The E2V smart series adds the modular (it’s a de-mountable valve) advantages to the well known high reliability and quality control of the hermetic E2V series.
    Especially in its newest version, the E2V-Z, it can satisfy the most demanding HVAC/R applications that are nowadays asking for even more performant products able to serve critical environments even if providing easy installation processes and furthermore assuring a simplified logistic management to OEMs.
    E2V-Z has been developed right for providing all of this, with particular regard to the Retail market but well suiting any refrigerating circuit demands, thanks to the innovative design of the valve-body, unique for all the different cartridge sizes.

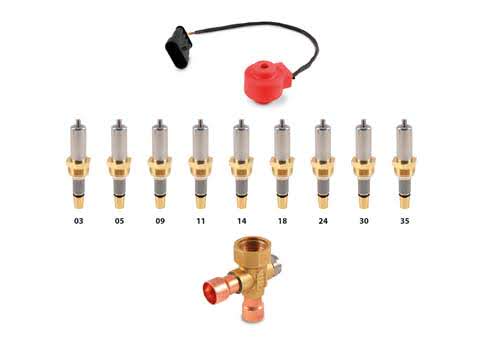

    This new concept permits to fit whatever size of cartridge on the same piece of body, enabling a capacity variation just by replacing the valve cartridge.

  • ApplicationElectronic TX valve
    Compatible RefrigerantsGroup 1: R1234yf, R32, R290, R600, R600a - Group 2: R22, R134a, R404A, R407C, R410A, R744, R507A, R417A, R1234ze, R448A, R449A, R450A, R513A, R407H, R427A, R452A
    Connection TypeSolder
    IP RatingIP69K
    Maximum Allowable Pressure60 barg
    Maximum Body Pressure60 barg
    Temperature Range-30T70°C (Room Temperature)
    Termination TypeSuperseal Plug Connection
    TypeE2V Smart
