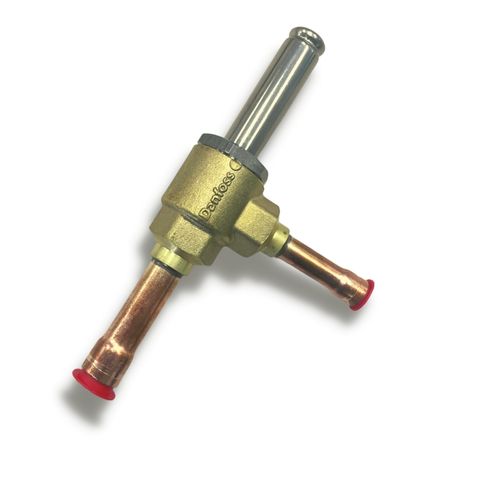

Electronic Expansion Valve AKV 10P1 - 68F5211

AKV 10P / AKV 10PS - Electric Expansion Valves

AKV 10P and AKV10PS are electric operated expansion valves designed for refrigerating plants.
The AKV 10P and AKV 10PS valves are normally controlled by a controller from Danfoss range of ADAP-KOOL controllers, that ensures a precise liquid injection into evaporators.

AKV 10P and AKV10PS valves are fully serviceable valves and are supplied as a parts programme with separate valve body and coil (with terminal box, cable or DIN plug).

Benefits:

• Precise control of liquid injection
• The AKV 10P/10PS valves cover a capacity range from 0.2 - 12.5 kW / 0.06 - 3.55 TR (404A / R507) and are divided into 8 capacity ranges
• Supports varierty of refrigerants
• Solenoid tight shut-off
• Fully serviceable valve
• Superior valve technology that provides soft pulse operation
• The AKV 10P/10PS valve are supplied as a parts programme, as follows:
  • Separate valve incl. exchangeable orifice
  • Separate coil

Published in Danfoss AU Catalogue 2020.10
