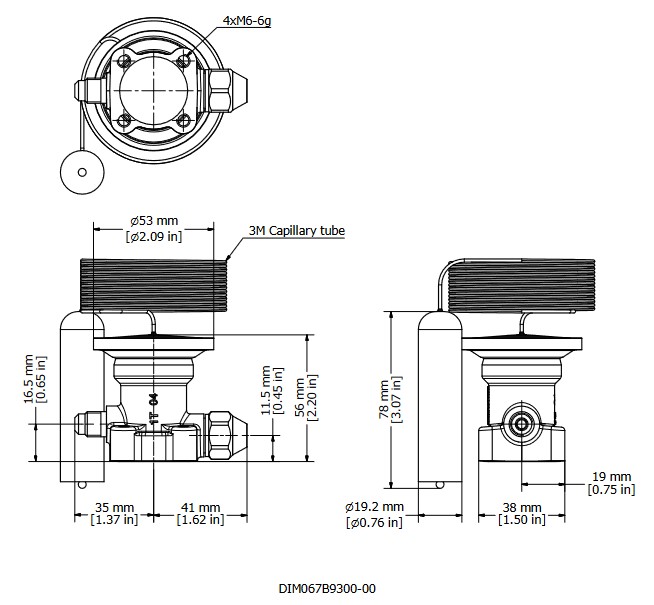

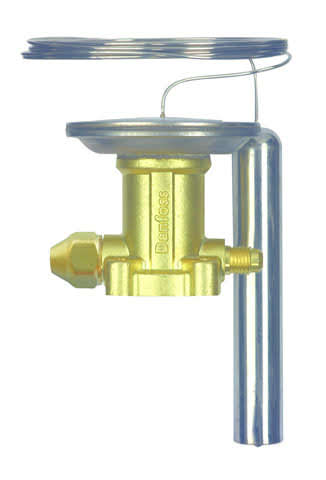

Element R404A TE5 TX Valve Ext Equal -40/-15C 3M c/w MOP45 - 67B3358

Element R404A TE5 TX Valve Ext Equal -40/-15C 3M c/w MOP45

Part Number: 67B3358

Element R404A TE5 TX Valve Ext Equal -40/-15C 3M c/w MOP45

Part Number: 67B3358
Danfoss

Sign in to your Aire-Biz account to view pricing and stock levels.

Sign in

Not an Airefrig customer? Complete our online account application form here to apply for a credit account.

  • TE 5 - TE 55, Thermostatic expansion valves

    TE 5 - TE 55 thermostatic expansion valves regulate the injection of refrigerant liquid into evaporators for medium sized plants.
    Injection is controlled by the refrigerant superheat. Therefore the valves are especially suitable for liquid injection in "dry" evaporators where the
    superheat at the evaporator outlet should always be kept constant.

    TE 5 - TE 55 valves are supplied as parts program, built up of three main components - thermostatic element, orifice assembly, and valve body with connections, and have external pressure equalization.
    Refrigerants: R22, R134a, R404A, R507, R407A, R407C, R407F, R410A and R32.

    Applications:
    • Traditional refrigeration
    • Air conditioning units
    • Water chillers

    Capacity range:
    • 2.3 – 71 TR / 8.17 – 250 kW

    Benefit:
    • Balance port design
    • Bi-flow with expansion in both directions
    • Cylindrical bulb and patented bulb strap design

  • Balanced PortYes
    Bi-flowYes
    BrandDanfoss
    Capillary Tube Length3M
    Danfoss Code Number067B3358
    External Equalised (Yes / No)Yes
    External Equaliser Connection1/4" SAE
    Maximum Working Pressure28 bar (400 psig)
    Operating Temperature Range-40°C to +15°C
    Supplied with MOPMOP45 (-10°C)
    TX Valve Element - RefrigerantR404A / R507
    TX Valve SeriesTE5
  • Element R404A TE5 TX Valve Ext Equal -40/-15C 3M c/w MOP45
  • Danfoss Orifice Selection Chart



    See the TE5-TE55 Orifice Range here.
