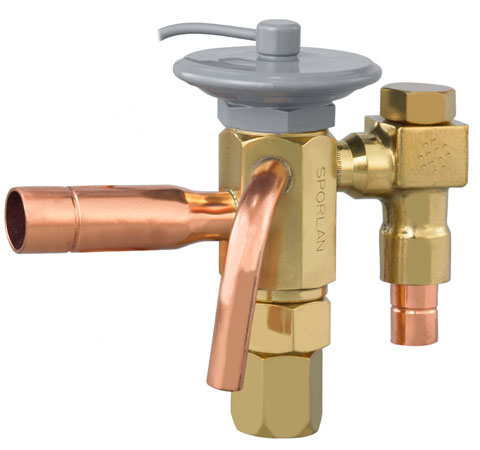

TX Valve R507/R404A Low Temp 3/8" x 1/2" ODS Balanced Port - SBQEAASZ

TX Valve R507/R404A Low Temp 3/8" x 1/2" ODS Balanced Port

Part Number: SBQEAASZ

TX Valve R507/R404A Low Temp 3/8" x 1/2" ODS Balanced Port

Part Number: SBQEAASZ
Sporlan

Sign in to your Aire-Biz account to view pricing and stock levels.

Sign in

Not an Airefrig customer? Complete our online account application form here to apply for a credit account.

  • The Sporlan Q & BQ series are replaceable cartridge style valves designed for small refrigeration systems, such as refrigerated cases, coolers, and freezers. The externally equalized versions of these valves are ideal for air conditioning and heat pump systems. BQ valves are balanced ported, engineered specifically for systems with a wide range of operating conditions and may be applied on bi-directional applications.

    Q & BQ brass body type valves feature Sporlan’s traditional knife edge, metal-to-metal thermostatic element to valve body construction, which ensures a leak-proof joint.

  • BrandSporlan
    ConnectionSolder
    Element No.43
    EqualisedExternal
    Equaliser Connection1/4" ODS
    Inlet Connection3/8" ODS
    Nominal Capacity kW0.88 - 1.17
    Outlet Connection1/2" ODS
    RefrigerantR507, R404A
    Suitable Alternative forSBFPEAAZ
    Temperature Range-20°C to -40°C
    Valve TypeSBQE - Series - Balanced Port
  • TX Valve R507/R404A Low Temp 3/8" x 1/2" ODS Balanced Port
