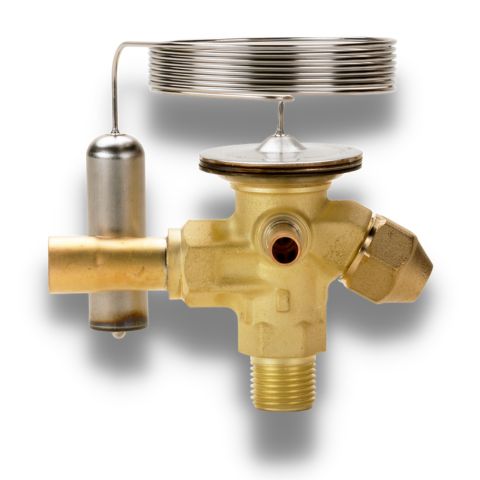

TX Valve T2 R449A Int Equal -40/+10C 3/8"MSAE x 1/2"ODF - 68Z3729

TX Valve T2 R449A Int Equal -40/+10C 3/8"MSAE x 1/2"ODF

Part Number: 68Z3729

Part Number: 68Z3729

Compare

Not an Airefrig customer? Complete our online account application form here to apply for a credit account.

T2 / TE2, Thermostatic expansion valves

Thermostatic expansion valves regulate the injection of refrigerant liquid into evaporators.
Injection is controlled by the refrigerant superheat.
Therefore the valves are especially suitable for liquid injection in ”dry“ evaporators where the superheat at the evaporator outlet is proportional to the evaporator load.

Features:
- Large temperature range
  - Equally applicable to freezing, refrigeration and air conditioning applications.
- Interchangeable orifice assembly
  - easy storage
  - easy capacity matching
  - better service.
  - easy cleaning and replacement of filter
- Rated capacities from 1 to 20.5 kW / 0.3 to 5.8 TR for R407C
- Can be supplied with MOP (Max. Operating Pressure).
  - Protects the compressor motor against excessive evaporating pressure during normal operation
- Stainless steel bulb and Danfoss patented bulb strap
  - Fast and easy to install
  - Good temperature transfer from pipe to bulb
- Valves for special temperature ranges can be supplied
- Design protected

Balanced Port	No
Bi-flow	No
Brand	Danfoss
Capillary Tube Length	1.5M
Danfoss Code Number	068Z3729
External Equalised (Yes / No)	No
External Equaliser Connection	n/a
Inlet Connection	3/8" Male Flare
Interchangeable Orifice	Purchase Separately
Maximum Working Pressure	34 bar (500 psig)
Operating Temperature Range	-40°C to +10°C
Outlet Connection	1/2" ODF Solder
Pressure Equalisation	Internal
Refrigerant	R448A / R449A
Supplied with MOP	n/a
TX Valve with Interchangeable Orifice - Type	T2
Valve Body	Angleway
