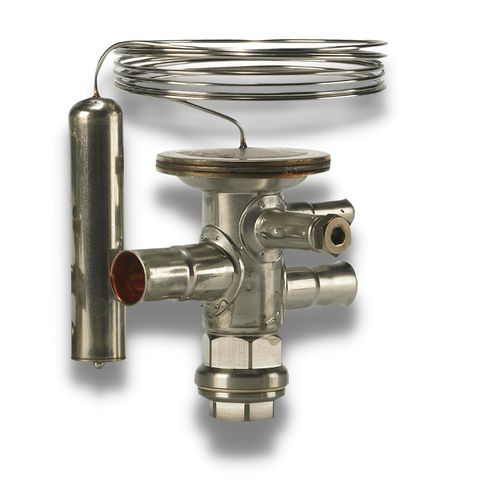

TX Valve TCAE R404A/R507 Ext Equal -40/+10C 1/2"ODF x 5/8"ODF - 68U4305

TX Valve TCAE R404A/R507 Ext Equal -40/+10C 1/2"ODF x 5/8"ODF

Part Number: 68U4305

TX Valve TCAE R404A/R507 Ext Equal -40/+10C 1/2"ODF x 5/8"ODF

Part Number: 68U4305
Danfoss

Sign in to your Aire-Biz account to view pricing and stock levels.

Sign in

Not an Airefrig customer? Complete our online account application form here to apply for a credit account.

  • Thermostatic expansion valve. Type TU & TC.

    The thermostatic expansion valves TUA/TUAE, TCAE with exchangeable orifice, TUB/TUBE/TCBE with fixed orifice and TUC/TUCE/TCCE with fixed orifice and fixed superheat setting, are made of stainless steel and therefore especially well suited to refrigeration systems in the food industry and where aggressive environments exist.

    These thermostatic expansion valves have been developed and designed especially for easy and quick soldering into hermetic refrigeration systems.

    TU and TC valves are basically identical, except for the larger diaphragm on the TC. The larger diaphragm allows for more travel of the orifice cone, which gives the TC valve more capacity than the TU valve. TU and TC valves are available in both Straightway and Angleway versions. TUA(E) and TCAE only as straight flow.

    Typical applications for TU and TC valves are:

    • Conventional refrigeration systems
    • Heat pump systems
    • Air conditioning systems
    • Specialty refrigeration appliances
    • Liquid chillers
    • Ice machines
    • Transport refrigeration





  • Balanced PortNo
    Bi-flowYes*
    BrandDanfoss
    Capillary Tube Length1.5M
    Danfoss Code Number068U4305
    External Equalised (Yes / No)Yes
    External Equaliser Connection1/4" ODF
    Inlet Connection1/2" ODF Solder
    Interchangeable OrificePurchase Separately
    Maximum Working Pressure45.5 bar (660 psig)
    Operating Temperature Range-40°C to +10°C
    Outlet Connection5/8" ODF Solder
    RefrigerantR404A / R507
    Supplied with MOPn/a
    TX Valve with Interchangeable Orifice - TypeTCAE
    Valve BodyStraightway

    Notes:

    *Bi-flow with orifice 1-2

  • TX Valve TCAE R404A/R507 Ext Equal -40/+10C 1/2"ODF x 5/8"ODF

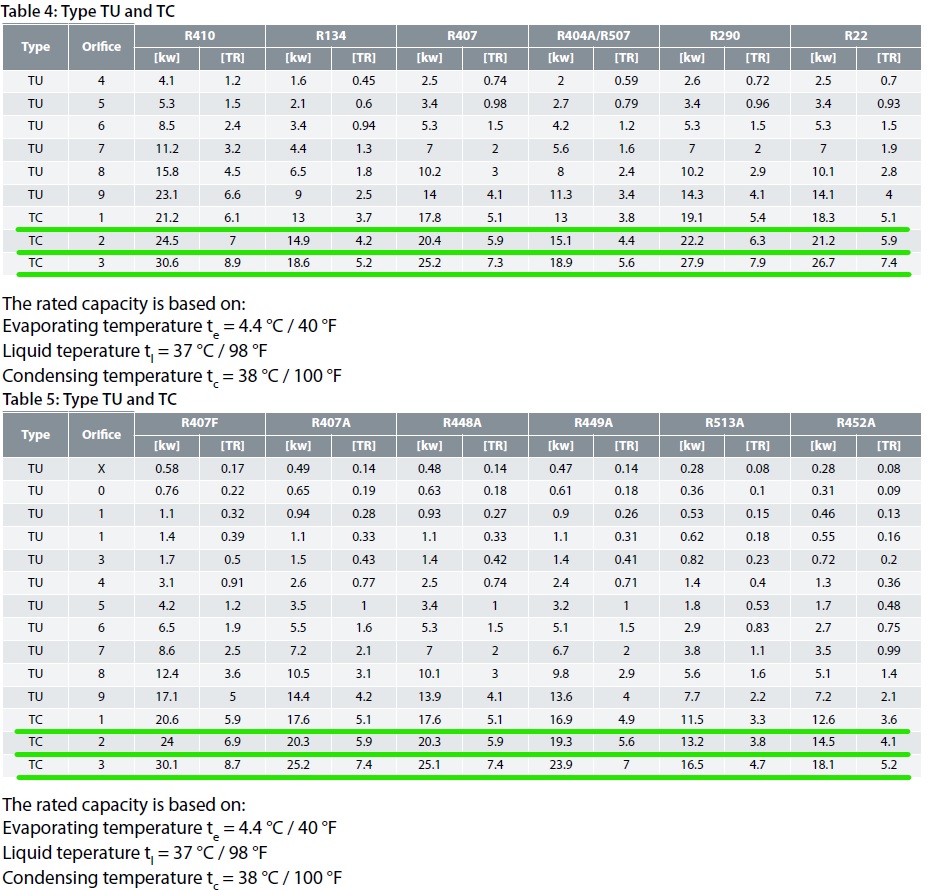

  • Danfoss Orifice Selection Chart



    See the TCAE Orifice Range here.
