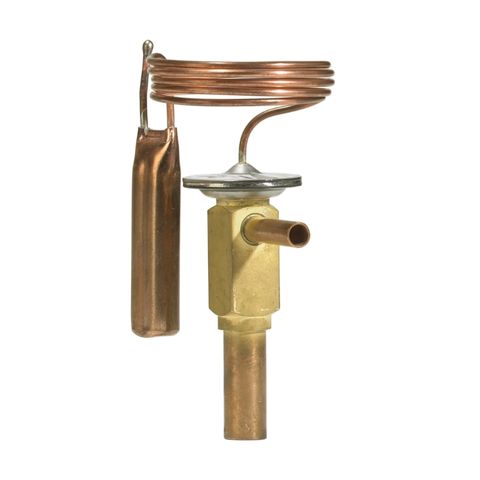

TX Valve TD1 No1 R134a/R513A Int Equal 0.8kW 1/4"ODF x 3/8"ODF - 68N1957

TX Valve TD1 No1 R134a/R513A Int Equal 0.8kW 1/4"ODF x 3/8"ODF

Part Number: 68N1957

TX Valve TD1 No1 R134a/R513A Int Equal 0.8kW 1/4"ODF x 3/8"ODF

Part Number: 68N1957
Danfoss

Sign in to your Aire-Biz account to view pricing and stock levels.

Sign in

Not an Airefrig customer? Complete our online account application form here to apply for a credit account.

  • TD1 / TDE1 Thermostatic expansion valves

    TD 1 / TDE 1 is a thermostatic expansion valve designed to regulate refrigerant injection into evaporators. The injection depends on the refrigerant superheat at the evaporator outlet, where the bulb must be placed.

    TD 1 / TDE 1 is constructed for hermetic sealed systems and supplied as angleway and straightway version.


    OEM Applications:
    • GDM (Glass Door Merchandiser)
    • Commercial fridge and freezer
    • Heat Pump

  • Balanced PortNo
    Bi-flowNo
    BrandDanfoss
    Capillary Tube Length750mm
    Danfoss Code Number068N1957
    External Equalised (Yes / No)No
    External Equaliser Connectionn/a
    Inlet Connection1/4" ODF
    Maximum Working Pressure34 bar (500 psig)
    Nominal Capacity (kW)0.8
    Operating Temperature Range-40°C to +10°C
    Orifice Number (Fixed)1
    Outlet Connection3/8" ODF
    RefrigerantR134a / R513A
    Supplied with MOPn/a
    TX Valve with Fixed Orifice - TypeTD1
    Valve BodyAngleway
  • TX Valve TD1 No1 R134a/R513A Int Equal 0.8kW 1/4"ODF x 3/8"ODF
