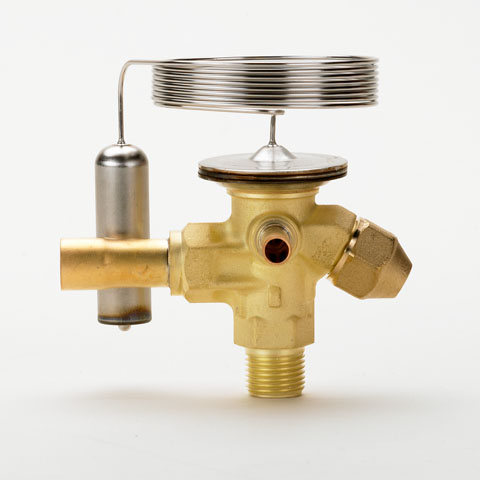

TX Valve TES2 R404A Ext Equal -60/-25C 3/8"MSAE x 1/2"ODF - 68Z3404

TX Valve TES2 R404A Ext Equal -60/-25C 3/8"MSAE x 1/2"ODF

Part Number: 68Z3404

TX Valve TES2 R404A Ext Equal -60/-25C 3/8"MSAE x 1/2"ODF

Part Number: 68Z3404
Danfoss

Sign in to your Aire-Biz account to view pricing and stock levels.

Sign in

Not an Airefrig customer? Complete our online account application form here to apply for a credit account.

  • T2 / TE2, Thermostatic expansion valves


    T2 / TE2 thermostatic expansion valves are used for liquid injection into evaporators on both refrigeration and air conditioning systems using fluorinated refrigerants e.g. R407C, R22, R134a, R404A, R507, R407C, R407F and R407A.

    T2 / TE2 valves are supplied as a two part program - Thermostatic element with valve body (T2/TE2) and orifices (No 0X - 06) sold separately.
    Available as angleway valves with flare x flare or flare x solder connection, with internal and external equalisation.

    Applications:
    • Traditional refrigeration
    • Heat pump systems
    • Air conditioning units
    • Liquid coolers
    • Transport refrigeration

    Capacity range:
    • 0.18 – 6.51 TR / 0.64 – 22.9 kW

    Benefit:
    • Interchangeable orifice assembly
    • Easy stocking
    • Easy capacity matching
    • Better service
    • Can be supplied with MOP(Max. Operating Pressure)
    • Protects the compressor motor against excessive evaporating pressure during normal operation

  • Balanced PortNo
    Bi-flowNo
    BrandDanfoss
    Capillary Tube Length1.5M
    Danfoss Code Number068Z3404
    External Equalised (Yes / No)Yes
    External Equaliser Connection1/4" ODF
    Inlet Connection3/8" Male Flare
    Interchangeable OrificePurchase Separately
    Maximum Working Pressure34 bar (500 psig)
    Operating Temperature Range-60°C to -25°C
    Outlet Connection1/2" ODF Solder
    RefrigerantR404A / R507
    Supplied with MOPn/a
    TX Valve with Interchangeable Orifice - TypeTE2 (TES2)
    Valve BodyAngleway
  • TX Valve TES2 R404A Ext Equal -60/-25C 3/8"MSAE x 1/2"ODF
  • Danfoss Orifice Selection Chart​

    See the T2-TE2 orifice range here.
