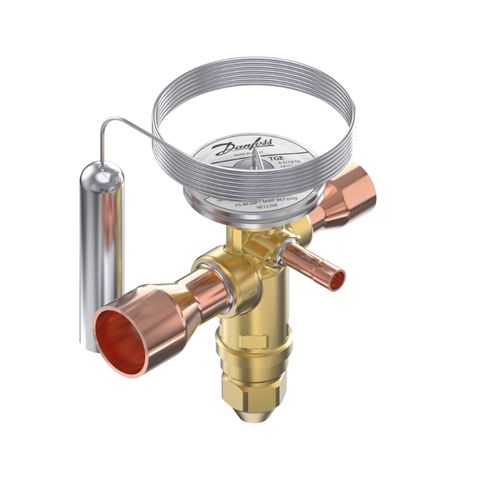

TX Valve TGE40 No26 R410A 110.0kW Bi-Flow B/Port 1-1/8" x 1-3/8" - 67N3166

TX Valve TGE40 No26 R410A 110.0kW Bi-Flow B/Port 1-1/8" x 1-3/8"

Part Number: 67N3166

TX Valve TGE40 No26 R410A 110.0kW Bi-Flow B/Port 1-1/8" x 1-3/8"

Part Number: 67N3166
Danfoss

Sign in to your Aire-Biz account to view pricing and stock levels.

Sign in

Not an Airefrig customer? Complete our online account application form here to apply for a credit account.

  • TGE, Thermostatic expansion valve

    TGE is an innovatively designed series of thermostatic expansion valves for fluorinated refrigerants.
    TGE has copper connections upgraded for high-pressure applications with tight soldering, and is available with a wide variety of connection types such as solder, flare, MIO, and ORFS, and a wide variety of connection sizes.

    Applications:

    • Water chillers
    • Bus A/C
    • Rooftop units
    • Heat pumps
    • Refrigerated containers and others A/C and other refrigeration system

    Refrigerants:
    • R410A • R22 • R134a • R407F • R407A • R404A • R507 • R407C • R32 • R290

    Capacity range:
    • 2.2 – 52 TR / 8 – 182 kW

    Benefit:
    • Balance port design
    • Biflow with expansion in both directions
    • Cylindrical bulb and patented bulb strap design

  • Balanced PortYes
    Bi-flowYes
    BrandDanfoss
    Capillary Tube Length3M
    Danfoss Code Number067N3166
    External Equalised (Yes / No)Yes
    External Equaliser Connection1/4" ODF
    Inlet Connection1-1/8" ODF
    Maximum Working Pressure46 bar (667 psig)
    Nominal Capacity (kW)110
    Operating Temperature Range-40°C to +10°C
    Orifice Number (Fixed)26
    Outlet Connection1-3/8" ODF
    RefrigerantR410A
    Supplied with MOPn/a
    TX Valve with Fixed Orifice - TypeTGE40
    Valve BodyStraightway
  • TX Valve TGE40 No26 R410A 110.0kW Bi-Flow B/Port 1-1/8" x 1-3/8"
