TX Valve TUB No1 R404A/R507 Int Equal 0.7kW 1/4"ODF x 1/2"ODF - 68U2094
TX Valve TUB No1 R404A/R507 Int Equal 0.7kW 1/4"ODF x 1/2"ODF
Part Number: 68U2094TX Valve TUB No1 R404A/R507 Int Equal 0.7kW 1/4"ODF x 1/2"ODF
Part Number: 68U2094Sign in to your Aire-Biz account to view pricing and stock levels.
Sign in Not an Airefrig customer? Complete our online account application form here to apply for a credit account.

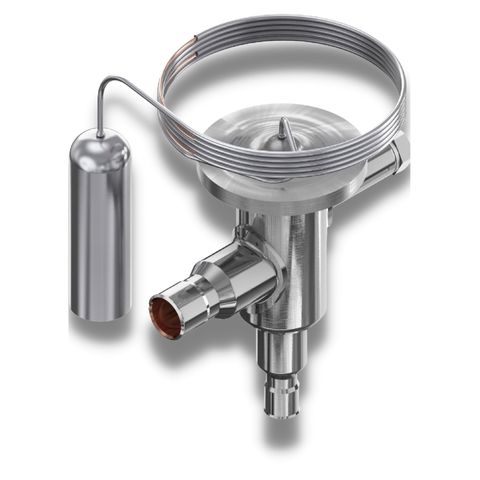

TUB/TUBE Thermostatic Expansion Valves
The thermostatic expansion valves TUB/TUBE with fixed orifice are made of stainless steel and therefore especially well suited to refrigeration systems in the food industry and where aggressive environments exist.
These thermostatic expansion valves have been developed and designed especially for easy and quick soldering into hermetic refrigeration systems.
| Balanced Port | No |
| Bi-flow | No |
| Brand | Danfoss |
| Capillary Tube Length | 800mm |
| Danfoss Code Number | 068U2094 |
| External Equalised (Yes / No) | No |
| External Equaliser Connection | n/a |
| Inlet Connection | 1/4" ODF |
| Maximum Working Pressure | 34 bar (500 psig) |
| Nominal Capacity (kW) | 0.7 |
| Operating Temperature Range | -40°C to +10°C |
| Orifice Number (Fixed) | 1 |
| Outlet Connection | 1/2" ODF |
| Pressure Equalisation | Internal |
| Refrigerant | R404A / R507 |
| Supplied with MOP | n/a |
| TX Valve with Fixed Orifice - Type | TUB |
| Valve Body | Angleway |
