TE 5 - TE 55, Thermostatic expansion valves
TE 5 - TE 55 thermostatic expansion valves regulate the injection of refrigerant liquid into evaporators for medium sized plants.
Injection is controlled by the refrigerant superheat. Therefore the valves are especially suitable for liquid injection in "dry" evaporators where the
superheat at the evaporator outlet should always be kept constant.

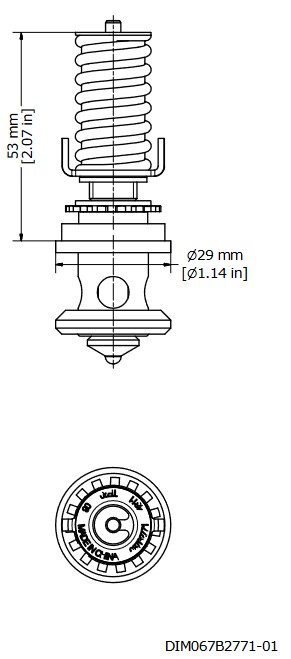

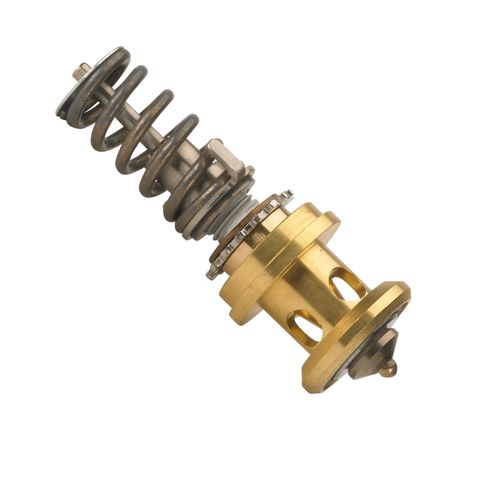

TE 5 - TE 55 valves are supplied as parts program, built up of three main components - thermostatic element, orifice assembly, and valve body with connections, and have external pressure equalization.
Refrigerants: R22, R134a, R404A, R507, R407A, R407C, R407F, R410A and R32.
