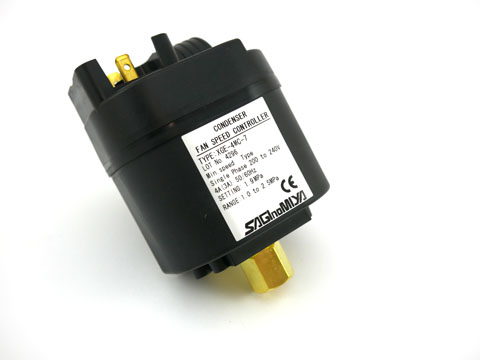

Fan Speed Controller 230V 0.2/3.0A 1/4" FF + Depressor - XGE4MC7

Fan Speed Controller 230V 0.2/3.0A 1/4" FF + Depressor

Part Number: XGE4MC7

Part Number: XGE4MC7

Compare

Not an Airefrig customer? Complete our online account application form here to apply for a credit account.

Saginomiya Fan Speed Controllers
- Suitable for controlling the condenser fan speed on refrigeration & air conditioning units.
- Keeps condensing pressure stable & constant throughout the year.
- Two selectable low speed operations are available:
  - 1) Keep fan motor running at low speed
  - 2) Turn fan off

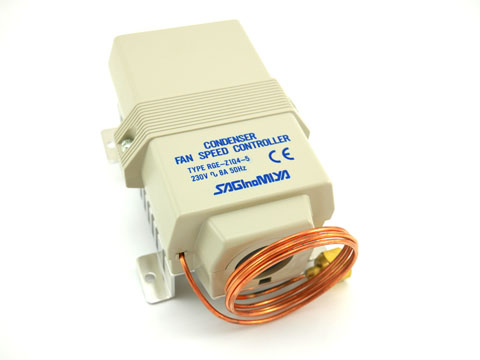

- RGE enclosures are IP54 rated
- XGE enclosures are IP65 rated
- Maximum working pressure : 4.7 Mpa
- Control Method: Phase control

*1 F.V.S Setting Kpa (Adjustment Range Min/Max)	1000/2500
*1 F.V.S Setting Kpa (Factory Setting)	1900
*2 EPB Kpa	600
Ambient Temp	-20°C to 55°C
Amps/Electrical	0.2-3.0/230V 1PH
Brand	Saginomiya
Pressure Connections	1/4" Female Flare with Depressor
Refrigerant	R22, R407C, R404A, R134a

Notes:

*1 F.V.S: (FULL VOLTAGE SET POINT)
The Pressure at which the control delivers 95% output effective voltage R.M.S (V%)

*2 E.P.B: (EFFECTIVE PROPORTIONAL BAND)
Pressure width where effective voltage corresponds to the minimum speed or causes cut off operation.

Min.Speed: Fan motor will be kept running at the specific valve (V%) when pressure band increase more the E.P.B.

Cut Off: Fan motor will be stopped when pressure decrease to the specific values (V%) for R.M.S
