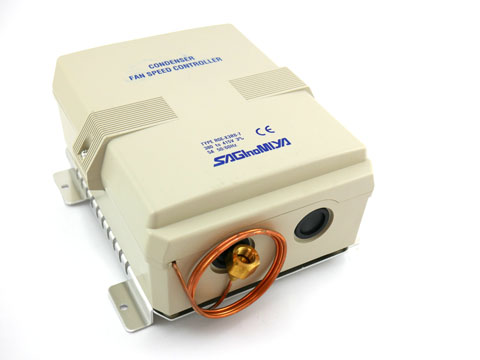

Fan Speed Controller 3PH 415V 0.2/5.0A R410A C/W Capillary
Part Number: RGEX3R67Fan Speed Controller 3PH 415V 0.2/5.0A R410A C/W Capillary
Part Number: RGEX3R67Sign in to your Aire-Biz account to view pricing and stock levels.
Sign in Not an Airefrig customer? Complete our online account application form here to apply for a credit account.
Saginomiya Fan Speed Controllers
- Suitable for controlling the condenser fan speed on refrigeration & air conditioning units.
- Keeps condensing pressure stable & constant throughout the year.
- Two selectable low speed operations are available:
- 1) Keep fan motor running at low speed
- 2) Turn fan off
- RGE enclosures are IP54 rated
- XGE enclosures are IP65 rated
- Maximum working pressure : 4.7 Mpa
- Control Method: Phase control
*1 F.V.S Setting Kpa (Adjustment Range Min/Max) | 1600/3900 |
*1 F.V.S Setting Kpa (Factory Setting) | 3200 |
*2 EPB Kpa | 800 |
Ambient Temp | -15°C to 50°C |
Amps/Electrical | 0.2-5.0/415V 3PH |
Brand | Saginomiya |
Pressure Connections | 900mm Capillary |
Refrigerant | R410A |
Notes:
*1 F.V.S: (FULL VOLTAGE SET POINT)
The Pressure at which the control delivers 95% output effective voltage R.M.S (V%)
*2 E.P.B: (EFFECTIVE PROPORTIONAL BAND)
Pressure width where effective voltage corresponds to the minimum speed or causes cut off operation.
Min.Speed: Fan motor will be kept running at the specific valve (V%) when pressure band increase more the E.P.B.
Cut Off: Fan motor will be stopped when pressure decrease to the specific values (V%) for R.M.S
