Dual Pressure Control KP15 LP:Auto HP:Manual SPDT 1/4"MSAE - 60124391

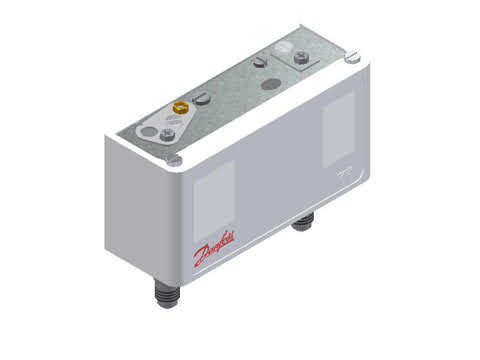

Dual Pressure Control KP15 LP:Auto HP:Manual SPDT 1/4"MSAE
Part Number: 60124391Dual Pressure Control KP15 LP:Auto HP:Manual SPDT 1/4"MSAE
Part Number: 60124391Sign in to your Aire-Biz account to view pricing and stock levels.
Sign in Not an Airefrig customer? Complete our online account application form here to apply for a credit account.
KP PRESSURE SWITCHES
KP pressure switches are designed to protect refrigeration systems from:
- excessively high discharge pressures
- excessively low suction pressures
- start / stop compressors
- operate air-cooled condenser fans
The enhanced contact system for 16A makes it possible to operate electrical motors up to 2 kW directly, without the use of contactors.
KP pressure switches are available in IP30 and IP44 enclosures.
Versions of the KP series are available for applications with HCFC and non-flammable HFC refrigerants, ammonia and hydrocarbons.
Refrigerants:
All HCFC and non-flammable HFC refrigerants
Benefits:
High reliability both electrically and mechanically-a KP switch can be connected directly to a single-phase AC motor of up to approximately 2 kW or installed in the control circuit of DC motors and large AC motors.
Versions with IP30 enclosure rating can be updated to IP44 or IP55 enclosure rating using top cover (IP44) or IP55 enclosure (IP55) available as accessories.
| Ambient Temperature Range | -40°C to +65°C |
| Brand | Danfoss |
| Contact Function | SPDT |
| Contact Rating | AC15=10A 400V , AC1=16A 400V , AC3=16A 400V , DC13=12W 220V , LR=112A 400V |
| Danfoss Code Number | 060-124391 |
| Differential Left Side (LP) | 0.7 bar to 4 bar (10 psig to 58 psig) |
| Differential Right Side (HP) | 4 bar (58 psig) |
| Dual Pressure Control | KP15 |
| Enclosure Rating IP | IP44 |
| Maximum Test Pressure Left Side (LP) | 20 bar (290 psig) |
| Maximum Test Pressure Right Side (HP) | 35 bar (510 psig) |
| Maximum Working Pressure Left Side (LP) | 17 bar (245 psig) |
| Maximum Working Pressure Right Side (HP) | 35 bar (510 psig) |
| Pressure Connections | 1/4" Male Flare |
| Product Accessories | Angle Bracket |
| Refrigerants | All HCFC and non-flammable HFC refrigerants |
| Regulation Range Left Side (LP) | -0.2 bar to 7.5 bar (6 inHg to 108 psig) |
| Regulation Range Right Side (HP) | 8 bar to 32 bar (116 bar to 464 psig) |
| Reset Function Left Side (LP) | Auto |
| Reset Function Right Side (HP) | Manual Max |
