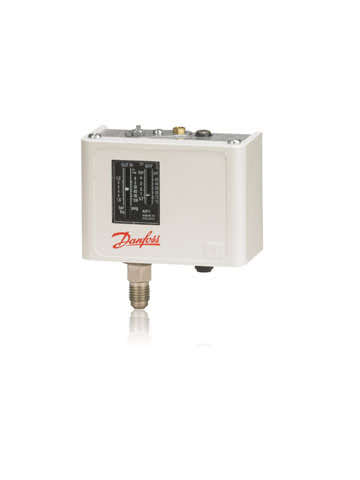

High Pressure Control KP5 Manual Reset SPDT 1/4"MSAE - 60117391

KP PRESSURE SWITCHES

KP pressure switches are designed to protect refrigeration systems from:
- excessively high discharge pressures
- excessively low suction pressures
- start / stop compressors
- operate air-cooled condenser fans

The enhanced contact system for 16A makes it possible to operate electrical motors up to 2 kW directly, without the use of contactors.
KP pressure switches are available in IP30 and IP44 enclosures.
Versions of the KP series are available for applications with HCFC and non-flammable HFC refrigerants, ammonia and hydrocarbons.

Refrigerants:
All HCFC and non-flammable HFC refrigerants

Benefits:
High reliability both electrically and mechanically-a KP switch can be connected directly to a single-phase AC motor of up to approximately 2 kW or installed in the control circuit of DC motors and large AC motors.
Versions with IP30 enclosure rating can be updated to IP44 or IP55 enclosure rating using top cover (IP44) or IP55 enclosure (IP55) available as accessories.
