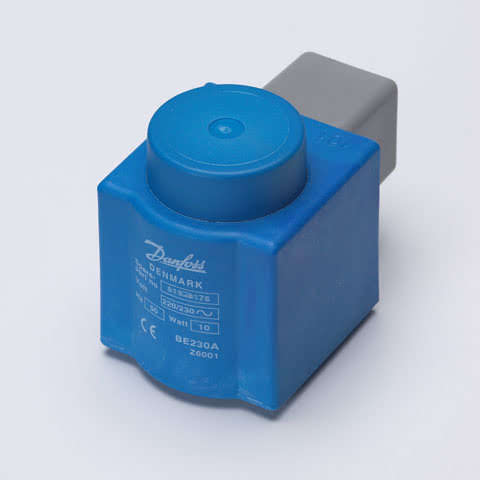

Solenoid Coil 13W/380V/50Hz 14W/440V/60Hz AC IP67 - EVR2-40 - 18F6703
Solenoid Coil 13W/380V/50Hz 14W/440V/60Hz AC IP67 - EVR2-40
Part Number: 18F6703Solenoid Coil 13W/380V/50Hz 14W/440V/60Hz AC IP67 - EVR2-40
Part Number: 18F6703Sign in to your Aire-Biz account to view pricing and stock levels.
Sign in Not an Airefrig customer? Complete our online account application form here to apply for a credit account.
Danfoss solenoid coils are usually ordered separately from valves to allow maximum flexibility, enabling you to select a valve and coil combination to best suit your needs.
The Danfoss coil program consists of both the easy-to-handle Clip-On system an traditional coils with threaded fastener.
Actuator size | 13.5 mm |
Ambient Temp Range | -40°C to +80°C |
Brand | Danfoss |
Coil fastening | Clip-on |
Danfoss Code Number | 018F6703 |
Duty Rating | Continuous |
Electrical connection | Terminal box |
Enclosure rating IP | IP67 |
Frequency (Hz) | 50Hz / 60Hz |
Power consumption (VA) | 23VA/380V/50Hz & 24VA/440V/60Hz |
Power consumption (W) | 13W/380V/50Hz & 14W/440V/60Hz |
Solenoid Coil Type | BE440CS |
Supply Voltage (V) | 380V AC 50Hz & 440V AC 60Hz |
Voltage Variation | -15% , +10% |
