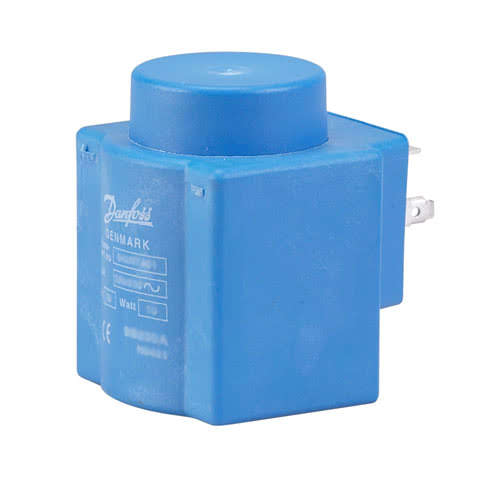

Solenoid Coil 16W/230V/50Hz 13W/230V/60Hz AC IP00 3xSpades - 18F7363
Solenoid Coil 16W/230V/50Hz 13W/230V/60Hz AC IP00 3xSpades
Part Number: 18F7363Solenoid Coil 16W/230V/50Hz 13W/230V/60Hz AC IP00 3xSpades
Part Number: 18F7363Sign in to your Aire-Biz account to view pricing and stock levels.
Sign in Not an Airefrig customer? Complete our online account application form here to apply for a credit account.
Danfoss solenoid coils are usually ordered separately from valves to allow maximum flexibility, enabling you to select a valve and coil combination to best suit your needs.
The Danfoss coil program consists of both the easy-to-handle Clip-On system an traditional coils with threaded fastener.
| Actuator size | 13.5 mm |
| Ambient Temp Range | -40°C to +50°C |
| Brand | Danfoss |
| Coil fastening | Clip-on |
| Connector | Use 42N1256 (042N1256) |
| Danfoss Code Number | 018F7363 |
| Duty Rating | Continuous |
| Electrical connection | No terminal box (only 3 x spades) |
| Enclosure rating IP | IP00 |
| Frequency (Hz) | 50Hz / 60Hz |
| Power consumption (VA) | 31VA/230V/50Hz & 24VA/230V/60 Hz |
| Power consumption (W) | 16W/230V/50Hz & 13W/230V/60 Hz |
| Solenoid Coil Type | BB230CS |
| Supply Voltage (V) | 230V AC 50Hz/60Hz |
| Voltage Variation | -15% , +10% |
