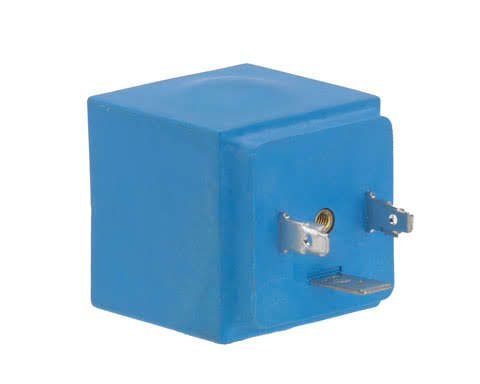

Solenoid Coil 9.5W/50Hz 7W/60Hz 24V AC IP00 3xSpades No Box - 42N4203
Solenoid Coil 9.5W/50Hz 7W/60Hz 24V AC IP00 3xSpades No Box
Part Number: 42N4203Solenoid Coil 9.5W/50Hz 7W/60Hz 24V AC IP00 3xSpades No Box
Part Number: 42N4203Sign in to your Aire-Biz account to view pricing and stock levels.
Sign in Not an Airefrig customer? Complete our online account application form here to apply for a credit account.
Danfoss solenoid coils are usually ordered separately from valves to allow maximum flexibility, enabling you to select a valve and coil combination to best suit your needs.
The Danfoss coil program consists of both the easy-to-handle Clip-On system an traditional coils with threaded fastener.
| Actuator size | 9 mm |
| Ambient Temp Range | -40°C to +50°C |
| Brand | Danfoss |
| Coil fastening | Clip-on |
| Danfoss Code Number | 042N4203 |
| Duty Rating | Continuous |
| Electrical connection | No terminal box (only 3 x spades) |
| Enclosure rating IP | IP00 |
| Frequency (Hz) | 50Hz / 60Hz |
| Power consumption (VA) | 18VA/24V/50Hz & 14VA/24V/60 Hz |
| Power consumption (W) | 9.5W/24V/50Hz & 7W/24V/60 Hz |
| Solenoid Coil Type | AZ024CS |
| Supply Voltage (V) | 24V AC |
