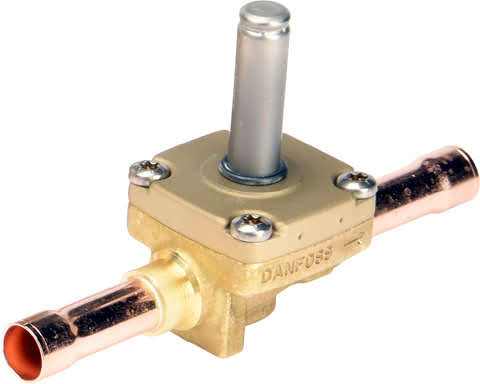

Solenoid Valve EVR20 1-1/8"ODS Normally Closed - Less Coil - 32L1244

Solenoid Valve EVR20 1-1/8"ODS Normally Closed - Less Coil

Part Number: 32L1244

Solenoid Valve EVR20 1-1/8"ODS Normally Closed - Less Coil

Part Number: 32L1244

Sign in to your Aire-Biz account to view pricing and stock levels.

Sign in

Not an Airefrig customer? Complete our online account application form here to apply for a credit account.

  • EVR solenoid valves

    EVR solenoid valves are direct or servo operated valves for liquid, suction and hot gas lines, they are suitable for use with most refrigerants including flammable refrigerants.

    These solenoid valves are suitable for condensing units and power packs in all refrigeration, freezing and air conditioning applications and are compatible with fluorinated refrigerants R22/R407C, R134a, R404A/R507, R410A, R407A, R32, R290, R600, R600a, R1234yf, R1234ze, R404A, R407F, R152A, R448A, R449A, R452A and R450A.

    EVR2 - EVR22 with solder connections and without manual stem are also suitable for flammable refrigerants R152A, R32, R290, R600, R600a, R1234yf and R1234ze.

    The valves can be ordered as normally open or normally closed valves and with or without manual operation.

    EVR valves are available with flare, solder or flange connections.

    • Traditional refrigeration
    • Heat pump systems
    • Air conditioning units
    • Liquid coolers
    • Transport refrigeration

    Maximum working pressure:
    • EVR solder and flare connections 45.2 bar / 655 psi

    Temperature range:
    • -40 to +105 °C / -40 to +221 °F

    • High reliability and durability due to maximum internal and external tightness.
    • MOPD up to 38 bar / 550 psi

  • Actuator size13.5mm
    Ambient Temp Range-40°C to +80°C
    Coil TypeAC / DC (coil not supplied with valve)
    Connection Size1-1/8" ODF Solder
    Danfoss Code Number032L1244
    Kv value (m³/h)6 m³/h
    Manual operation optionNo
    Max Opening Differential Press (10W AC)38 bar (550 psig)
    Max Opening Differential Press (20W DC)20 bar (290 psig)
    Max Opening Differential Press (coil BJ/BX)38 bar (550 psig)
    Maximum Working Pressure45.2 bar (655 psig)
    Min Opening Differential Press (10W AC)0.03 bar (0.44 psig)
    Port (orifice) Size22 mm
    RefrigerantsSuitable for most refrigerants, including flammable refrigerants
    Solenoid Valve TypeEVR 20
    Valve bodyStraightway
    Valve FunctionNormally closed
    Valve operationServo-Diaphragm
