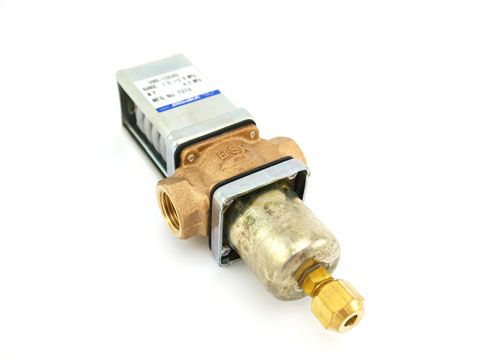

Water Regulating Valve (R410A) 2-Way Press Actuated 1/2" FPT - VWR1504G
Water Regulating Valve (R410A) 2-Way Press Actuated 1/2" FPT
Part Number: VWR1504GWater Regulating Valve (R410A) 2-Way Press Actuated 1/2" FPT
Part Number: VWR1504GSign in to your Aire-Biz account to view pricing and stock levels.
Sign in Not an Airefrig customer? Complete our online account application form here to apply for a credit account.
Type VWR two-way pressure actuated water-regulating valves, open on pressure increase.
Pressure connection is 1/4” flare.
Body Material: Bronze for water and brine.
For use with R410A Refrigerant.
Brand | Saginomiya |
Connection Size | 1/2" |
Connection Style | FPT |
Factory Setting | 2400 KPa |
Max Bellows Pressure | 4200 KPa |
Max Water Pressure | 1000 KPa |
Max Water Temp | 60°C |
Max Working Pressure | 4200 KPa |
Pressure Range KPa | 1500-2900 KPa |
Valve Body Material | Bronze |
Notes:
Approx change in pressure setting for each full turn of adjusting screw is 200 KPa
L: 70mm H: 100mm h: 83mm D: 42mm
