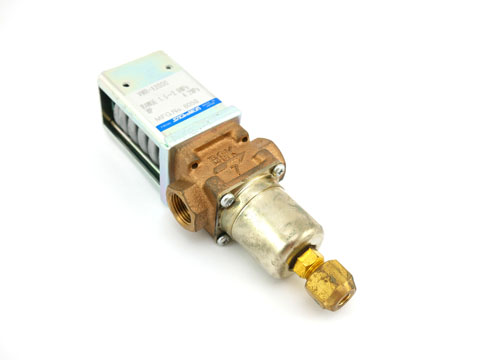

Water Regulating Valve (R410A) 2-Way Press Actuated 3/8" FPT

Part Number: VWR1203G

Water Regulating Valve (R410A) 2-Way Press Actuated 3/8" FPT

Part Number: VWR1203G
Saginomiya

Sign in to your Aire-Biz account to view pricing and stock levels.

Sign in

Not an Airefrig customer? Complete our online account application form here to apply for a credit account.

  • Type VWR two-way pressure actuated water-regulating valves, open on pressure increase.

    Pressure connection is 1/4” flare.

    Body Material: Bronze for water and brine.

    For use with R410A Refrigerant.

  • BrandSaginomiya
    Connection Size3/8"
    Connection StyleFPT
    Factory Setting2400 KPa
    Max Bellows Pressure4200 KPa
    Max Water Pressure1000 KPa
    Max Water Temp60°C
    Max Working Pressure4200 KPa
    Pressure Range KPa1500-2900 KPa
    Valve Body MaterialBronze

    Notes:

    Approx change in pressure setting for each full turn of adjusting screw is 200 KPa

  • L: 55mm H: 91mm h: 72mm D: 40mm
