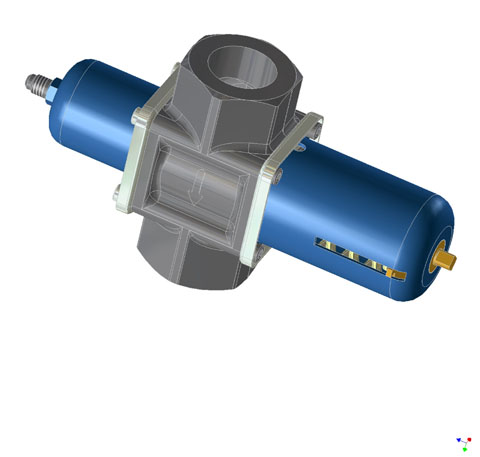

WVFX32 Water Regulating Valve Pressure Operated 1-1/4" BSP - 3F1232

WVFX32 Water Regulating Valve Pressure Operated 1-1/4" BSP

Part Number: 3F1232

WVFX32 Water Regulating Valve Pressure Operated 1-1/4" BSP

Part Number: 3F1232
Danfoss

Sign in to your Aire-Biz account to view pricing and stock levels.

Sign in

Not an Airefrig customer? Complete our online account application form here to apply for a credit account.

  • WVFX / WVO / WVS, Pressure operated water valves

    WVFX, WVO and WVS pressure operated water valves are used to regulate the flow of water in refrigeration plant with water-cooled condensers in order to ensure constant proportional regulation of condensing pressure. The water valve modulates the water flow to maintain the condensing pressure at a constant level during operation. When the refrigeration plant is stopped, the cooling water flow is shut off automatically.

    Media: fresh water and neutral brine.

    For use with aggressive media such as sea water, WVFX 15, WVFX 20 and WVFX 25 are available in stainless steel versions.

    • Reliable design - factory setting is maintained during whole life cycle

    • Insensitive to dirt - fit and forget solution

    • High permissible water pressure (PS) =16 bar - can be used with water towers

    • WVFX 10 – WVFX 40 are direct actuated valves

    • WVS 32 – WVS 100 are servo-operated valves

  • BrandDanfoss
    Connection Size (Refrigerant)1/4" Male Flare
    Connection Size (Water)1-1/4" BSP
    Control Pressure Range [Max]17 bar (246 psi)
    Control Pressure Range [Min]4 bar (58 psig)
    Danfoss Code Number003F1232
    Differential Pressure10 bar (145 psi)
    Kv value11 m³/h
    Max. Working Pressure Refrigerant24.1 bar (349 psi)
    Max. Working Pressure Water10 bar (145 psi)
    RefrigerantsAll HCFC and HFC refrigerants with max working pressure below 349 psi
    Water Regulating ValveWVFX32
  • WVFX32 Water Regulating Valve Pressure Operated 1-1/4" BSP
